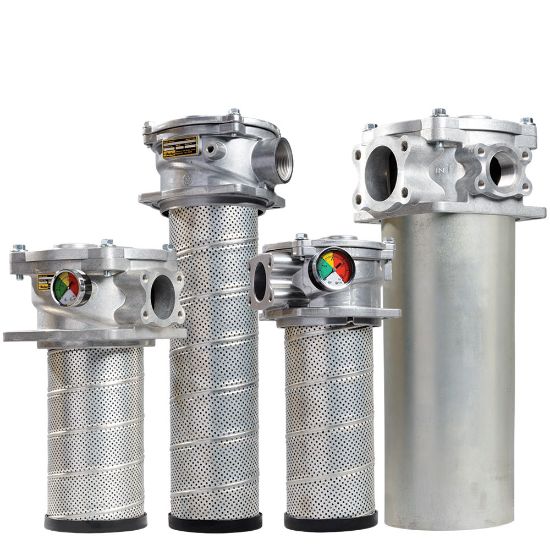

Picture of Low Pressure Tank Top Filters GLF Series - GLF3220QVPI2Y32D

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Low Pressure Tank Top Filters GLF Series - GLF3220QVPI2Y32D

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.
Availability:
Backordered
SKU GLF3220QVPI2Y32D
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Filter Element20Q MicroglassSeal MaterialFluorocarbon
Indicator TypePort pluggedBypass Valve (psi)35
OptionsDrop TubePort Connection TypeDual 2" SAE Flange Face 61 (1/2" - 13 UNC)
Flow Rate (gpm)230For Fluid TypeMineral, Petroleum and Polyalphaolefin (PAO) based fluids
DivisionEngine Mobile Hydraulic and Fuel Filtration DivisionSeal MaterialFluorocarbon
Filter Element Type20Q MicroglassMounting TypeTank Mounted
Pressure Rating150Weight8
Indicator TypePort PluggedMaximum Operating Temperature275
Bypass Valve Pressure Rating35Housing MaterialCast Aluminum Alloy
OptionsDrop TubeIndicator Pressure Setting28
Port TypeDual 2" SAE Flange Face 61 (1/2" - 13 UNC)Flow Rate870
Compatible Element945913Q
Product resources

Literature and Reference Materials
