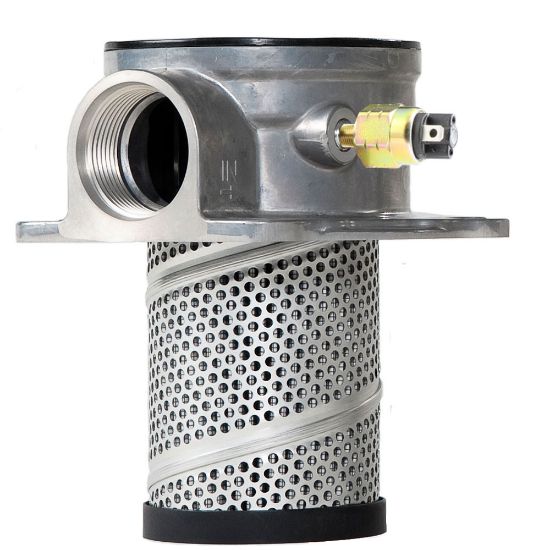

Picture of Low Pressure Tank Top Filters PT Series - PT4210QBSGS16W

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Low Pressure Tank Top Filters PT Series - PT4210QBSGS16W

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.
Availability:
Backordered
SKU PT4210QBSGS16W
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Flow Rate50 gpm (189.3 lpm)Bypass Valve Pressure Rating25 psid (1.7 bar)
OptionsSteel weld ringIndicator TypePressure Switch
Port Connection TypeSAE-16Filter Element Type10Q Microglass
Seal MaterialNitrileMaximum Operating Temperature225.0 °F
OptionsTank MountedFor Fluid TypeMineral, Petroleum and Polyalphaolefin (PAO) based fluids
Filter Element Type10Q MicroglassSeal MaterialNitrile
Compatible Element936748Pressure Rating15 psi
DivisionEngine Mobile Hydraulic and Fuel Filtration DivisionFlow Rate50.0 Gal/min
Mounting StyleTank MountedBypass Valve Pressure Rating1.7 bar
Weight0.98 kgIndicator Pressure SettingSteel Weld Ring
Indicator TypePressure SwitchHousing MaterialAluminum
Product resources

Literature and Reference Materials
