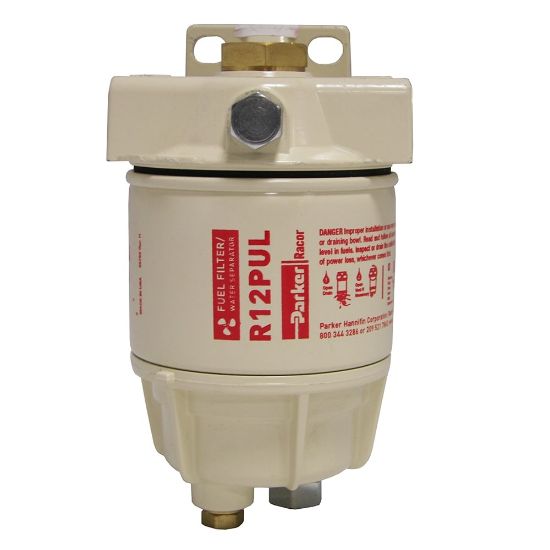

Picture of Marine Fuel Filter Water Separator – Racor Spin-on Series - 120RMAM30

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Marine Fuel Filter Water Separator – Racor Spin-on Series - 120RMAM30

Racor Marine Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. UL-approved versions available.
Availability:
Backordered
SKU 120RMAM30
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Micron Rating98% @ 30 MicronFlow Rate15 gph / 57 lph
Port Size1/4”-18 NPTFBowl MaterialAluminum Bowl
Filtered MediumDieselUL CertificationYes
Integral Primer PumpNoDivisionEngine Mobile Original Equipment Division
BrandRacorWeight1.4 lb / 0.6 Kg
Maximum Operating Pressure7Depth3.2
Width3.2Height5.7
Head MaterialPower Coated Aluminium AlloyNumber of Ports2 Inlet / 2 Outlet
Compatible ElementR12PUL = 30 micron<br/>R12T = 10 micron<br/>R12SUL = 2 micronClean Pressure Drop0.15
Filter Element Type30 Micron Aquabloc Spin-onOperating Temperature-40 to 250
Maximum Fluid Temperature190.0Mounting TypeBracket Included
Product SeriesMarine Spin-on FF/WS
Product resources

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

Distributor Support, Literature and Reference Materials, Selector Guides
