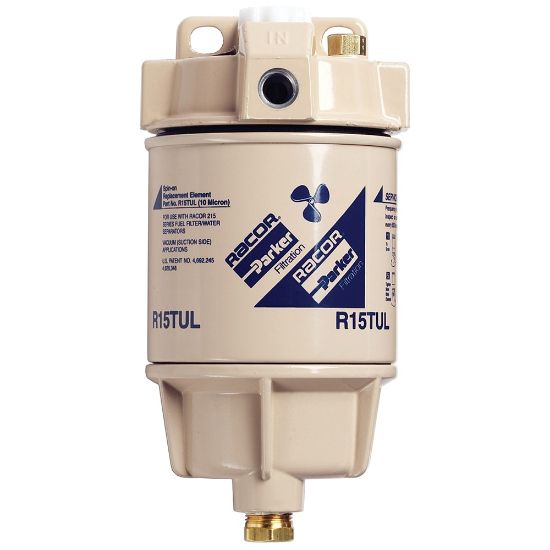

Picture of Marine Fuel Filter Water Separator – Racor Spin-on Series - 215RMAM

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Marine Fuel Filter Water Separator – Racor Spin-on Series - 215RMAM

Racor Marine Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. UL-approved versions available.
Availability:
Backordered
SKU 215RMAM
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Micron Rating98% @ 10 MicronFlow Rate15 gph / 57 lph
Port Size1/4”-18 NPTFBowl MaterialAluminum Bowl
Filtered MediumDieselUL CertificationYes
Integral Primer PumpYesDivisionEngine Mobile Original Equipment Division
BrandRacorMaximum Operating Pressure30
Weight1.2 lb / 0.5 KgHead MaterialPower Coated Aluminium Alloy
Clean Pressure Drop0.15Filter Element Type10 Micron Aquabloc Spin-on
Operating Temperature-40 to 250Maximum Fluid Temperature190.0
Mounting TypeBracket IncludedProduct SeriesMarine Spin-on FF/WS
Depth4Width3.9
Height7.7Number of Ports1 Inlet / 2 Outlet
Compatible ElementR15S = 2 micron<br/>R15TUL = 10 micron<br/>R15P = 30 micron
Product resources

Compliance, Certifications & Safety, Literature and Reference Materials

Distributor Support, Literature and Reference Materials, Selector Guides

Literature and Reference Materials
