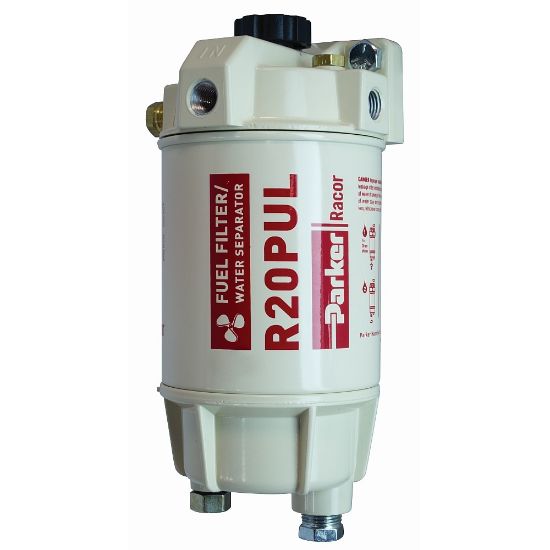

Picture of Marine Fuel Filter Water Separator – Racor Spin-on Series - 230RMAM30

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Marine Fuel Filter Water Separator – Racor Spin-on Series - 230RMAM30

Racor Marine Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. UL-approved versions available.
Availability:
Backordered
SKU 230RMAM30
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Micron Rating98% @ 30 MicronFlow Rate30 gph / 114 lph
Port Size1/4”-18 NPTFBowl MaterialAluminum Bowl
Filtered MediumDieselUL CertificationYes
Integral Primer PumpYesDivisionEngine Mobile Original Equipment Division
BrandRacorMaximum Operating Pressure30
Head MaterialPower Coated Aluminium AlloyFilter Element Type30 Micron Aquabloc Spin-on
Operating Temperature-40 to 250Maximum Fluid Temperature190.0
Mounting TypeBracket IncludedProduct SeriesMarine Spin-on FF/WS
Depth4Width3.9
Number of Ports1 Inlet / 2 OutletHeight10
Weight2.0 lb / 0.5 KgCompatible ElementR20PUL = 30 micron<br/>R20TUL = 10 micron<br/>R20S = 2 micron
Clean Pressure Drop0.3
