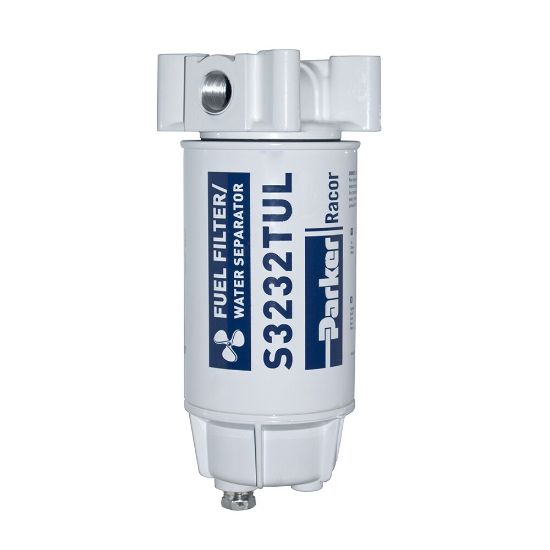

Picture of Marine Fuel Filter Water Separator – Racor Spin-on Series - 3120R-RAC-32

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Marine Fuel Filter Water Separator – Racor Spin-on Series - 3120R-RAC-32

Racor Marine Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. UL-approved versions available.
Availability:
Backordered
SKU 3120R-RAC-32
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Micron Rating98% @ 10 MicronBowl MaterialAluminum Bowl
Filtered MediumGasolineUL CertificationYes
Integral Primer PumpNoFlow Rate120 gph / 454 lph
Port Size1/2"-14 NPTFDivisionEngine Mobile Original Equipment Division
BrandRacorOperating Temperature-40 to 121 °C
Head MaterialPower Coated Aluminium AlloyFilter Element Type10 Micron Aquabloc Spin-on
Mounting TypeBracket IncludedNumber of Ports1 Inlet / 1 Outlet
Maximum Fluid Temperature88.0 °CWeight2.0 lb / 0.5 Kg
Depth5 inchWidth10.2 cm
Height26.4 cmProduct SeriesGasoline Spin-on
Compatible ElementS3232TUL = 10 micron<br/>S3232 = 10 micronClean Pressure Drop1.38 kPa
Maximum Operating Pressure7 psi
