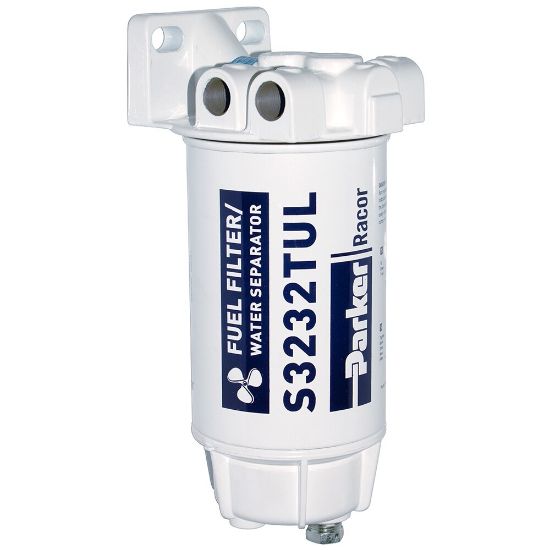

Marine Fuel Filter Water Separator – Racor Spin-on Series - 660R-RAC-02

Name: Marine Fuel Filter Water Separator – Racor Spin-on Series - 660R-RAC-02
SKU: 660R-RAC-02

Racor Marine Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. UL-approved versions available.

Availability:

Backordered

SKU 660R-RAC-02

POR

Qty:

Products specifications

Attribute name	Attribute value
Micron Rating	98% @ 10 Micron	Bowl Material	Aluminum Bowl
Filtered Medium	Gasoline	UL Certification	Yes
Integral Primer Pump	No	Port Size	3/8"-18 NPTF
Flow Rate	90 gph / 341 lph	Division	Engine Mobile Original Equipment Division
Width	4.2 inch	Brand	Racor
Operating Temperature	-40 to 121 °C	Head Material	Power Coated Aluminium Alloy
Number of Ports	2 Inlet / 2 Outlet	Filter Element Type	10 Micron Aquabloc Spin-on
Mounting Type	Bracket Included	Product Series	Marine Spin-on FF/WS
Maximum Fluid Temperature	190.0 °F	Height	10.5 inch
Compatible Element	S3232TUL = 10 micron<br/>S3232 = 10 micron	Maximum Operating Pressure	7 psi
Clean Pressure Drop	4.19 kPa	Weight	1.4 kg
Depth	11.4 cm

Product resources

Compliance, Certifications & Safety, Literature and Reference Materials

Racor EB00033 Marine Gasoline Spin-on Filters - Bowl Inspection (PDF)

Distributor Support, Literature and Reference Materials, Selector Guides

Literature and Reference Materials
