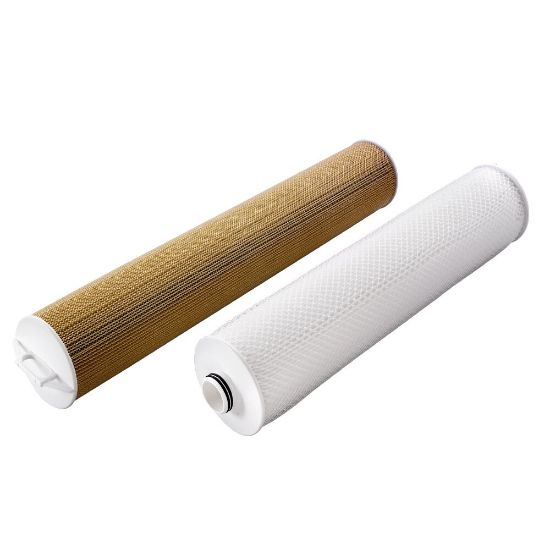

Picture of MaxGuard Large Diameter Pleated Filter Cartridges | For Large Flow Applications - MXGC050-40N-SM

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

MaxGuard Large Diameter Pleated Filter Cartridges | For Large Flow Applications - MXGC050-40N-SM

Parker’s MaxGuard™ large diameter pleated filter cartridge product line provides a cost-effective alternative to bag media or standard 2½ inch filter cartridges for large flow applications. These filter cartridges handle flows up to 90 gpm.
Availability:
Backordered
SKU MXGC050-40N-SM
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
End Cap Configuration226 O-Ring/Flat cap with handleLength (inch)40
Type/ConfigurationCelluloseSeal MaterialBuna-N
Micron Rating (µm)5Hose Reinforcement Material & StructurePolypropylene
Filter ConstructionLarge Diameter PleatedCore TypePolypropylene
Outside Diameter6IndustryOil and Gas
Branddomnick hunterFlow Rate90 gal/min Maximum
End Cap MaterialPolypropyleneDivisionIndustrial Process Filtration Division
MediaCellulosicFunctionClarification/Prefiltration/Polishing
Product resources

Literature and Reference Materials
