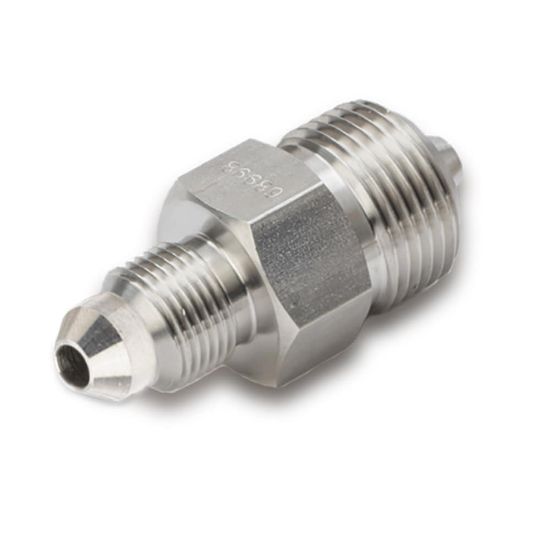

Picture of Medium Pressure Adapters - Y5Y5-4-9C

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Medium Pressure Adapters - Y5Y5-4-9C

Medium Pressure adapters have a 58/60 degree coned and threaded tubing design with a maximum working pressure rating of 20,000 psi.
Availability:
Backordered
SKU Y5Y5-4-9C
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Connection 2 Tube Outside Diameter9/16" (O.D.)Connection 2 TypeMale Medium Pressure
Connection 1 Tube Outside Diameter1/4" (O.D.)Connection 1 TypeMale Medium Pressure
DivisionParflex DivisionMaximum Operating Pressure20000
Hex Size0.875Connection 2 TypeMale
Connection 1 TypeMaleConnection 2 Size13/16"-16
Connection 1 Size7/16"-20Overall Length2.18
Materials of ConstructionStainless Steel AISI 316
