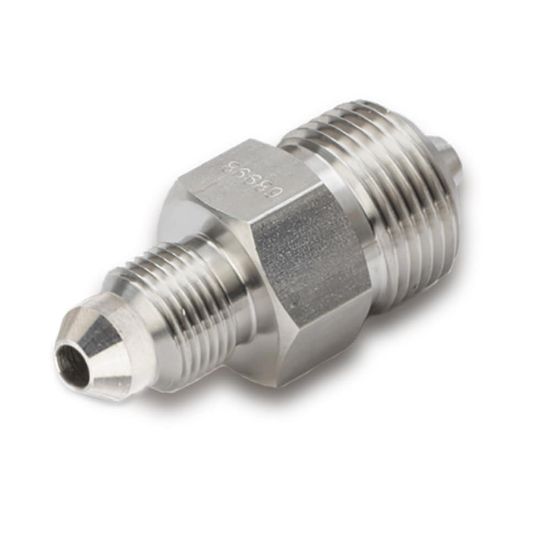

Picture of Medium Pressure Adapters - Y5Y6-4-4C

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Medium Pressure Adapters - Y5Y6-4-4C

Medium Pressure adapters have a 58/60 degree coned and threaded tubing design with a maximum working pressure rating of 20,000 psi.
Availability:
Backordered
SKU Y5Y6-4-4C
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Connection 1 TypeMale Medium PressureConnection 1 Tube Outside Diameter1/4" (O.D.)
Connection 2 TypeMale High PressureConnection 2 Tube Outside Diameter1/4" (O.D.)
Connection 2 TypeMaleHex Size0.63
Connection 2 Size9/16"-18Materials of ConstructionStainless Steel AISI 316
Maximum Operating Pressure20000Connection 1 Size7/16"-20
Connection 1 TypeMaleDivisionParflex Division
Overall Length1.73
