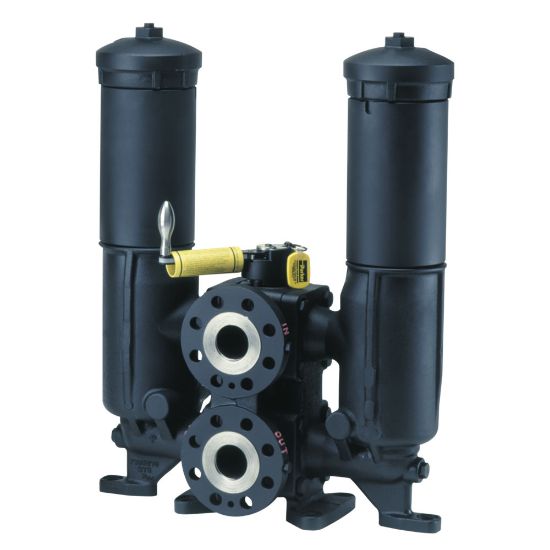

Picture of Medium Pressure Inline Duplex Filter MPD Series - MPD110QEE2E225Y91

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Medium Pressure Inline Duplex Filter MPD Series - MPD110QEE2E225Y91

The Parker MPD's innovative modular design provides solutions across a broad range of industrial applications. Allowable operating pressure of 1200 PSI/82.8 Bar and capable of flows up to 150 GPM/581 LPM depending on viscosity.
Availability:
Backordered
SKU MPD110QEE2E225Y91
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Flow Rate100 gpm (378.5 lpm)Port Connection Type2 inch SAE 4 bolt code 61 flange face
Seal MaterialNitrileMicron Rating10Q Microglass
Bypass Valve Pressure Rating25 psi (1.7 bar)OptionsNone
Indicator Typeelectrical with DIN 43650 connector, electrical with DIN 43650 connectorProduct TypeHydraulic Filter
Maximum Operating Temperature71.0 °CHousing MaterialDuctile Iron and Steel
Port Type2 inch SAE 4 bolt code 61 flange faceDivisionEngine Mobile Hydraulic and Fuel Filtration Division
OptionsNoneBypass Valve Pressure Rating25 psi
Filter Element TypeCorelessWeight98 kg
Indicator Pressure Setting1.7 barMicron Rating10Q Microglass
Product StyleHydraulic FilterFor Fluid TypeMineral, Petroleum and Polyalphaolefin (PAO) based fluids
Compatible Element935518QMounting StyleInline
Pressure Rating81.6 barIndicator Typeelectrical with DIN 43650 connector, electrical with DIN 43650 connector
Seal MaterialNitrileFlow Rate100.0 Gal/min
Product resources

Literature and Reference Materials
