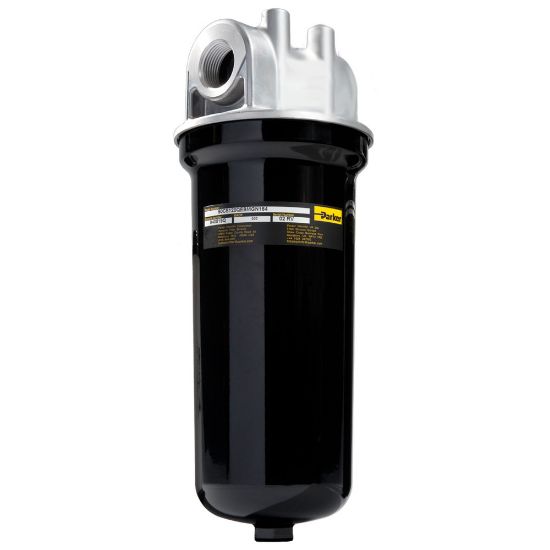

Picture of Medium Pressure Inline Filter 12CS/50CS Series - 50CS105QEBNGS201

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Medium Pressure Inline Filter 12CS/50CS Series - 50CS105QEBNGS201

The Parker 12CS/50CS Coreless Medium Pressure Spin-On Filter Series are the Smart Alternative to Spin-on Cans. Max allowable operating pressure of 500 PSI/34.5 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.
Availability:
Backordered
SKU 50CS105QEBNGS201
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialNitrileOptionsNo options
Bypass Valve Pressure Rating25 psid (1.7 bar)Micron Rating05Q Microglass
Indicator TypeNo indicatorFlow Rate55 GPM (208 LPM)
Port Connection TypeSAE-20 integral threadsHousing MaterialAluminum
Seal MaterialNitrileProduct TypeHydraulic Filter
For Fluid TypeMineral, Petroleum and Polyalphaolefin (PAO) based fluidsDivisionEngine Mobile Hydraulic and Fuel Filtration Division
Bypass Valve Pressure Rating1.7 barOptionsNo options
Pressure Rating34.5 barFilter Element TypeCoreless
Indicator Pressure Setting1.7 barMaximum Operating Temperature225.0 °F
Product StyleHydraulic FilterMounting StyleInline
Micron Rating05Q MicroglassIndicator TypeNo indicator
Flow Rate208.0 L/minWeight2.7 kg
Port TypeSAE-20 integral threadsCompatible Element940817Q
