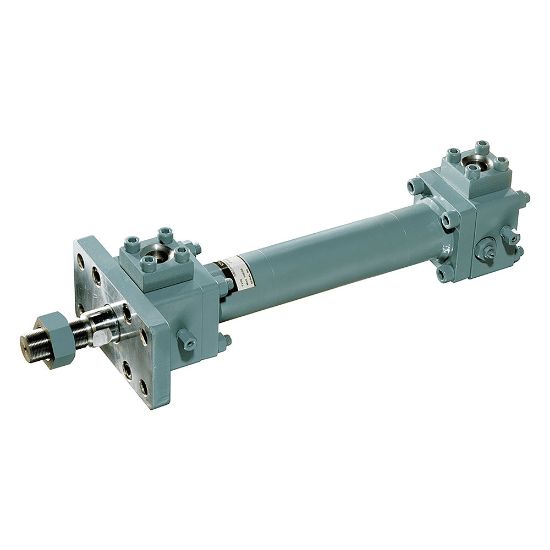

Picture of Mill Type Hydraulic Cylinder Model:70/140M-3 - 140M-3

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Mill Type Hydraulic Cylinder Model:70/140M-3 - 140M-3

The 70/140M-3 series is a 7/14MPa specification mill type hydraulic cylinder. tube flange style sets the standard for superior performance, durability and trouble-free operation.
Availability:
Backordered
SKU 140M-3
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Fluid TypePetroleum-based fluid(When using another fluid,give us such instructions.)Cushioning TypeMetal fitting system
Screw ToleranceJIS 6g/6HSeal Material2:Urethane rubber(standard) 1:Nitrile rubber 3:Fluorocarbon
Speed Range10-500mm/s(φ40-140), 20-500mm/s(φ160-250)Mounting StyleSD,LA,FA,FB,CA,TC
Rod End StylesRod eye(T-end),Rod clevis(Y-end),Lock nutBellows MaterialStandard：Nylon tarpaulin, Semi-standard：Chloroprene, Conex
Bore Diameter (mm)40, 50, 63, 80, 100, 125, 140, 160, 180, 200, 224, 250Proof Pressure (MPa)28
Temperature Range (C)-10-+80 (ambient/fluid temperature, No freezing)Nominal Pressure (MPa)14
Stroke Length Tolerance (mm)0-+0.8(0-100mm), 101-250mm:0-+1.0(101-250mm), 0-+1.25(251-630mm), 0-+1.4(631-1000mm), 0-+1.6(1001-1600mm), 0-+1.8(1601-2000mm)Maximum Working Pressure (MPa)23
Minimum Operating Pressure (MPa)0.3(φ40-140), 0.5(φ160-250)TypeDouble Acting Single Rod, 14MPa
ColorMunsell7.5BG5.5/2.5Rod TypeRod B, Rod A
DivisionTAIYO Division
