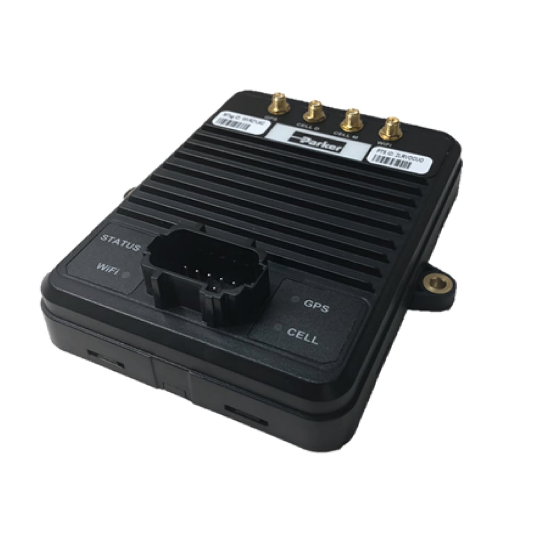

Picture of Mobile IoT - Gateway and Service Plans - 169321ECD

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Mobile IoT - Gateway and Service Plans - 169321ECD

Parker Mobile IoT Gateways are connected to our IoT Cloud Solution, including Controller OTA integrations, Machine Diagnostics, Condition Monitoring, Visualization and Reporting and Machine APIs.
Availability:
Backordered
SKU 169321ECD
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
VersionPVSG-IOT-CT17Minimum Operating Temperature-40 °C
DivisionElectronic Motion and Controls DivisionIngress Protection Rating67
Maximum Operating Temperature70 °CPower Supply Voltage6.5 or 32 VDC
Electrical ConnectionDeutsch DT16 18 pin, key AOptionsExternal Cellullar, GPS and WiFi Antennas
SoftwareAvailable with Parker Mobile IoT Lite, Standard and Premium Service, sold separateVisualizationIoT Web Portal
Number of Inputs1Number of Outlets1
GNSS ConstellationsGalileoGNSS Frequency Bands4G Bands 2,4,5,12
Communication InterfaceEthernet
Product resources

Literature and Reference Materials
