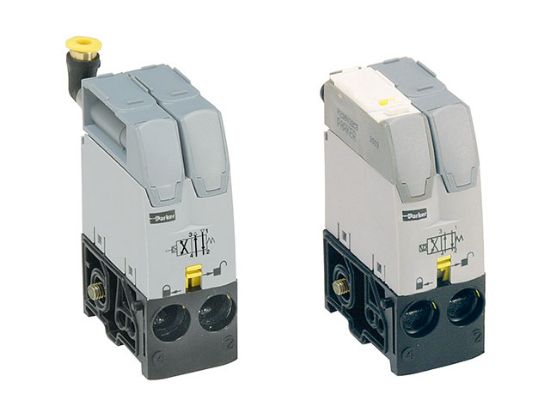

Moduflex T Series - Size 1 Valve - P2M1TCPP

Name: Moduflex T Series - Size 1 Valve - P2M1TCPP
SKU: P2M1TCPP

Parker flexible manifold valve system for individual solenoid wiring for use with integrated Push-to-Connect fittings

Availability:

Backordered

SKU P2M1TCPP

POR

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Pkg Qty	1
Operator Type Detail	Double	Pilot Supply	Internal
Override Type	Multi-function	CV Factor	0.22
Operator Type	Air Piloted	Parker Group	Automation
Parker Division	Pneumatic	Valve Positions	2-position
Offset Return Type	Spring Return	Valve Passages	3-way
Operator Type	Air Piloted	Operator Type Detail	Double
Pilot Supply	Internal	Series	Moduflex
Operating Temperature	5°F to 140°F (-15°C to 60°C)	Trade Name	Moduflex
Supply Pressure Range	Vacuum to 123 PSIG (Vacuum to 8.3 bar)	Override Type	Multi-function
Center Condition	Dual Valve, NO/NO w/Exhaust Check	CV Factor	0.22
Pneumatic Valve Type	Manifold Valve	Solenoid Connection	M8
Series Type	T Series - Size 1
