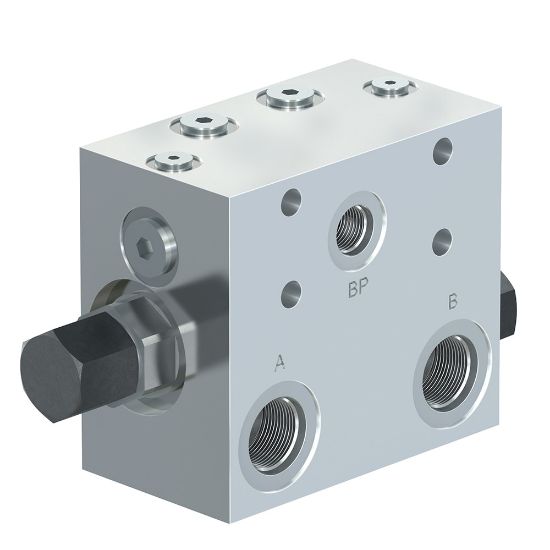

Picture of Motor Control Valves - MMB-015-V-BJMH-53B

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Motor Control Valves - MMB-015-V-BJMH-53B

Note: This product is no longer available - please contact us for further assistance.
Availability:
Backordered
SKU MMB-015-V-BJMH-53B
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Brake Release Pressure350 PSI, 24 BARConfigurationMotor Control on B port
VentedYesFlow Rate15 GAL/MIN, 56.25 L/MIN
Pilot Pressure Ratio10:1Maximum Operating Temperature+400
Operation TypeAutomaticBrake Release Pressure350
Maximum Flow Rate15For Fluid TypeMineral-based or synthetic hydraulic fluids
Minimum Pilot Pressure300DivisionHydraulic Systems Division
Flow Rate15Operating Temperature-15 to +400
Leak Rate5 @ 80% Holding PressureHolding Pressure3000
Seal MaterialFluorocarbonMaximum Operating Pressure3000
Port SizeSAE-10Brake Release Port SizeSAE-6
FunctionSingle Motor ControlActuation TypePressure Sensing
Maximum Inlet Pressure Rating3000Pilot Pressure Ratio10:1
Weight1.5Valve MaterialAll parts steel. All operating parts hardened steel
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)Mounting TypeManifold Mount
Filter Efficiency RatingISO 4406 18/16/13, SAE Class 4VentedYes
Body MaterialAluminumDivisionHydraulic Valve Systems Division
ConfigurationMotor Control on B portMinimum Operating Temperature-15
Product resources

Literature and Reference Materials
