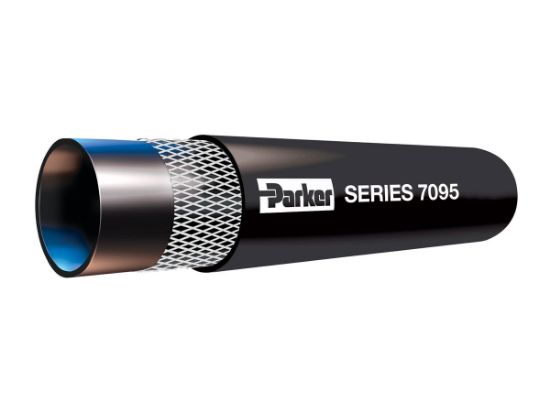

Picture of MPT® II NONCONDUCTIVE MULTIPURPOSE OIL RESISTANT HOSE - 7095-150204

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

MPT® II NONCONDUCTIVE MULTIPURPOSE OIL RESISTANT HOSE - 7095-150204

MPT II Nonconductive Multipurpose Oil Resistant Hose is designed for transfer of air, mild chemicals, oil and water in applications to 212°F and 300 psi
Availability:
Backordered
SKU 7095-150204
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
ColorBlackHose I.D. (inch)1-1/2
Maximum Working Pressure (psi)200PackagingReels
MediaAirDivisionHose Products Division
Specifications MetN/AMaximum Operating Pressure1.4 MPa
Inside Diameter1-1/2 inchHose Inner Tube MaterialBlack
Size-24Hose Reinforcement MaterialMutiple Plies of Textile
Cover MaterialChloroprene Rubber (CR)Minimum Bend Radius254 mm
Minimum Operating Temperature-20 °FOutside Diameter51.6 mm
Weight1.34 kg/mApplicationNon-conductive
Maximum Operating Temperature212 °F (Other Media)Nominal Hose Inside Diameter40 mm
Pkg Qty200Inner Diameter1.5 Inch
UOMFTColorBlack
Pkg Qty/UOM200 FTWorking Pressure200 PSI (14 bar)
Mating Fitting Series43Package TypeReel
Parker GroupFluid ConnectorInch/MetricInch
Parker DivisionHose ProductsInner Diameter Inch/mmInch
Inner Diameter1.5 InchColorBlack
Hose Pressure RangeLowMating End Fitting Series43
Series7095Trade NameMPT® II
Hose CategoryMultipurpose Oil Resistant
