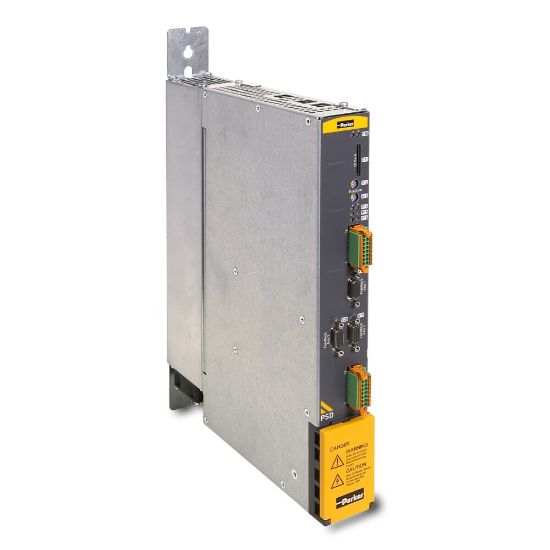

Picture of Multi-Axis Servo Drives - PSD1M Series - PSD1MW3433B2200000

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Multi-Axis Servo Drives - PSD1M Series - PSD1MW3433B2200000

PSD1M multi-axis servo drives have power ratings up to 20kVA with EtherCAT, auto-tuning, and STO plus support for various feedback devices. The space-saving PSD1M combines up to 3 drives in a single housing with a common energy sharing DC-bus.
Availability:
Backordered
SKU PSD1MW3433B2200000
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Feedback TypeMulti-Feedback Input (DSL, Resolver, 1Vss Encoder, TTL Encoder, Analog Hall)Output Current Rating8A + 5A + 5A
TechnologyBasicInterface TypeMulti-Fieldbus (EtherCAT/PROFINET/EtherNetIP)
Compatible Motor TypeBrushless ServoProduct TypeServo Drive
Modes of ControlPosition Control (External Command)Continuous Output Current Rating1x 8 + 2x 5 A
Product SeriesPSD1BrandPARKER
Input Voltage325 to 680 VDCOperating Temperature0 to 40 °C
Specifications MetUL ListedCompatible Feedback DeviceHiperface DSL Single Cable
Drive Axis TypeMulti-Axis TechnologyDivisionElectronic Motion and Controls Division
Communication InterfaceEtherCAT
