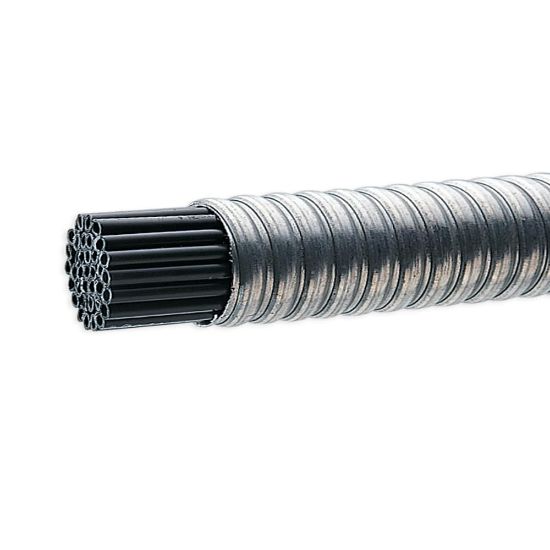

Picture of Multitube® Plastic Tubing Bundles - 10PA-E0440

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Multitube® Plastic Tubing Bundles - 10PA-E0440

Multitube® Plastic Tubing Bundles save space, reduce installation costs and offer protection in various industrial plant, robotics and laboratory applications.
Availability:
Backordered
SKU 10PA-E0440
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Tube TypeArmored TubingNumber of Tubes10
Tube O.D. (inch)1/4Tubing MaterialPolyethylene
Tube Wall Thickness (inch)0.04DivisionParflex Division
Cover Colorn/aTube MaterialPolyethylene (PE)
Cover MaterialGalvanized SteelNumber of Tubes10
Minimum Bend Radius5Tube Outside Diameter1/4
Nominal Outside Diameter1.25Maximum Operating Temperature150
Minimum Operating Temperature-80
