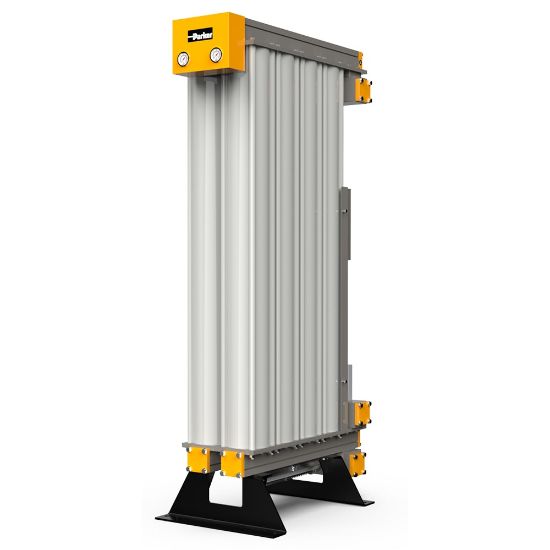

Picture of MX DS Large Flow Heatless Compressed Air Dryer - MXP106-40-ATEX

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

MX DS Large Flow Heatless Compressed Air Dryer - MXP106-40-ATEX

Large flow modular compressed air dryers providing pressure dew points of -40°C, -20°C and -70°C options available. With flow rates up to 2040 m³/hr @ 7 barg, even greater flow rates can be achieved by multi-banking the dryers.
Availability:
Backordered
SKU MXP106-40-ATEX
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Pressure Dew Point-40°C (-40°F) or -20°C (-4°F) OptionATEX Specifications MetATEX Directive 2104/34/EU Group II
ISO GradeClass 2.2.2 or Class 2.3.2Port Size2½ inch
Flow Rate1530 m³/h @7 barg (900 cfm @102 psig)Product TypeCompressed Air Dryer
Product SeriesMXProduct StyleHeatless
DivisionGas Separation and Filtration Division EMEAWeight637 kg
Industry• Offshore Oil and GasAmbient Temperature131.0 °F Maximum
BrandPARKERDepth550.0 mm
DivisionGas Separation and Filtration Division EMEAOperating Pressure58 to 190 psig
Operating Temperature5 to 50 °CApplicationCompressed Air Applications
Specifications MetPED 2014/68/EU Fluid Group IINoise Level< 75 dBA
Connection TypeBSPPWidth53.6 inch
Height74.5 inchTechnologyFiltration
Ingress Protection RatingIP55 Indoor Use OnlyElectrical RequirementsNot Applicable /<br/>Fully Pneumatic Operation
