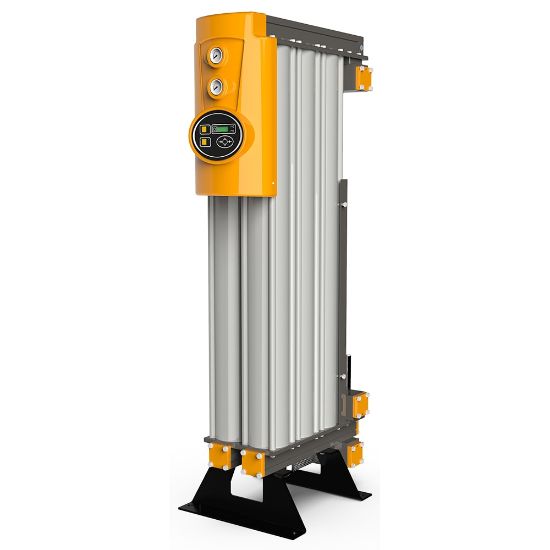

Picture of MX DS Large Flow Heatless Compressed Air Dryer - MXS103CDS-40BP

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

MX DS Large Flow Heatless Compressed Air Dryer - MXS103CDS-40BP

Large flow modular compressed air dryers providing pressure dew points of -40°C, -20°C and -70°C options available. With flow rates up to 2040 m³/hr @ 7 barg, even greater flow rates can be achieved by multi-banking the dryers.
Availability:
Backordered
SKU MXS103CDS-40BP
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
ATEX Specifications MetNoISO GradeClass 2.2.2 or Class 2.3.2
Flow Rate612 m³/h @7 barg (360 cfm @102 psig)Pressure Dew Point-40°C (-40°F) or -20°C (-4°F) Option
Port Size2 inchIngress Protection RatingIP55 Indoor Use Only
TechnologyFiltrationHeight74.5 inch
Noise Level< 75 dBADivisionGas Separation and Filtration Division EMEA
BrandPARKERDivisionGas Separation and Filtration Division EMEA
Product StyleHeatlessAmbient Temperature55.0 °C Maximum
Operating Temperature41 to 122 °FDepth21.7 inch
Specifications MetPED 2014/68/EU Fluid Group IIConnection TypeBSPP or NPT
Operating Pressure4 to 13 bargElectrical Requirements85 - 265V 1ph 50/60Hz
Product TypeCompressed Air DryerWeight316 kg
Product SeriesMXIndustry• Industrial Manufacturing Equipment<br/>• Food & Beverage<br/>• Automotive<br/>• Electronics<br/>• Pharmaceuticals<br/>• Medical & Dental
ApplicationCompressed Air ApplicationsWidth856.0 mm
