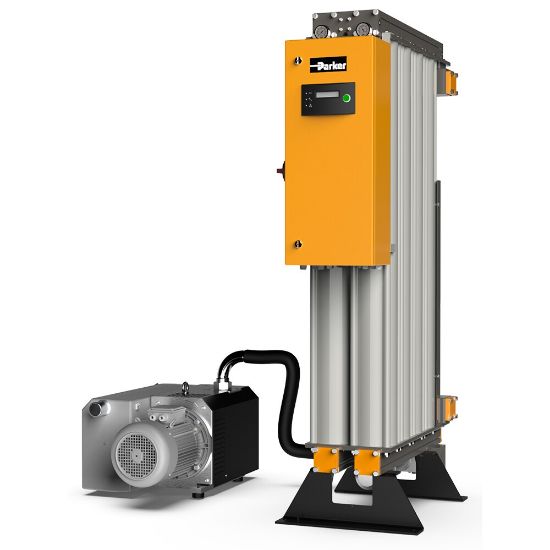

Picture of MXLE Large Flow Low Energy Heatless Compressed Air Dryer - MXLE103-70

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

MXLE Large Flow Low Energy Heatless Compressed Air Dryer - MXLE103-70

Large flow low energy modular compressed air dryers providing pressure dew points of -70°C and -40°C (-20°C option) with flow rates up to 2040 m³/hr @ 7 barg, even greater flow rates can be achieved by multi-banking the dryers.
Availability:
Backordered
SKU MXLE103-70
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Port Size2 inchPressure Dew Point-70°C (-100°F)
ISO GradeClass 2.1.2Flow Rate765 m³/h @7 barg (240 cfm @102 psig)
Ambient Temperature131.0 °F MaximumWidth962.0 mm
Product SeriesMXLEProduct TypeCompressed Air Dryer
Operating Temperature5 to 50 °CWeight847 lb
Depth550.0 mmApplicationCompressed Air Applications
Height1892.0 mmIngress Protection RatingIP55 Indoor Use Only
IndustryIndustrial Manufacturing Equipment<br/>Food & Beverage<br/>Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & DentalTechnologyFiltration
Noise Level< 75 dBADivisionGas Separation and Filtration Division EMEA
BrandPARKEROperating Pressure58 to 190 psig
Electrical RequirementsStandard: 400V +/-10% 3PH 50Hz<br/>Option: 460V +/-10% 3PH 60HzProduct StyleHeatless Low Energy - Vacuum Assisted
DivisionGas Separation and Filtration Division EMEASpecifications MetPED 2014/68/EU Fluid Group II
Connection TypeBSPP
