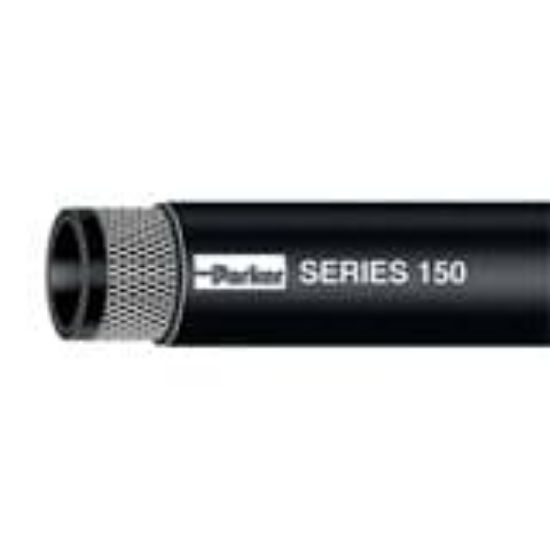

Picture of NEXLO PVC General Purpose Hose, Series 150 - 150-05008501

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

NEXLO PVC General Purpose Hose, Series 150 - 150-05008501

Nexlo PVC general purpose hose is designed for transfer of air, diluted chemicals and water in applications to 150°F and 300 psi, Series 150
Availability:
Backordered
SKU 150-05008501
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
ColorBlackHose I.D. (inch)5/16
MediaAirDivisionHose Products Division
Maximum Operating Pressure300Maximum Operating Temperature150
Minimum Operating Temperature25Length per Package500
ApplicationPVC HoseCover MaterialPVC
Cover StructureSmoothInside Diameter5/16
Outside Diameter0.560Minimum Bend Radiusn/a
Hose Reinforcement Material2 Plies of TextileWeight0.1
Package TypeReelCompatible Fittingn/a
Hose Inner Tube MaterialBlack
