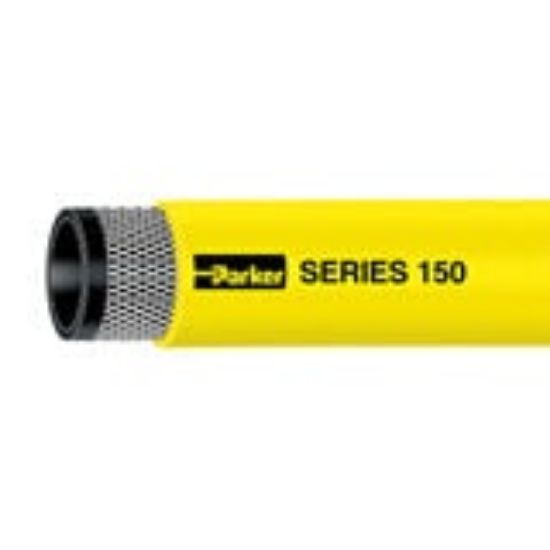

Picture of NEXLO PVC General Purpose Hose, Series 150 - 150-06002501

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

NEXLO PVC General Purpose Hose, Series 150 - 150-06002501

Nexlo PVC general purpose hose is designed for transfer of air, diluted chemicals and water in applications to 150°F and 300 psi, Series 150
Availability:
Backordered
SKU 150-06002501
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (inch)3/8ColorYellow
DivisionHose Products DivisionMaximum Operating Temperature150 °F
Weight0.16 kg/mMaximum Operating Pressure300 psi
Length per Package500 ftMinimum Operating Temperature-5 °C
ApplicationPVC HoseCover MaterialPVC
Cover StructureSmoothMinimum Bend Radiusn/a
Hose Reinforcement Material2 Plies of TextileMediaChemicals (Diluted)
Inside Diameter9.5 mmPackage TypeReel
Outside Diameter15.9 mmCompatible Fittingn/a
Hose Inner Tube MaterialBlack
California Residents: Prop-65 Warning
Product resources

Literature and Reference Materials
