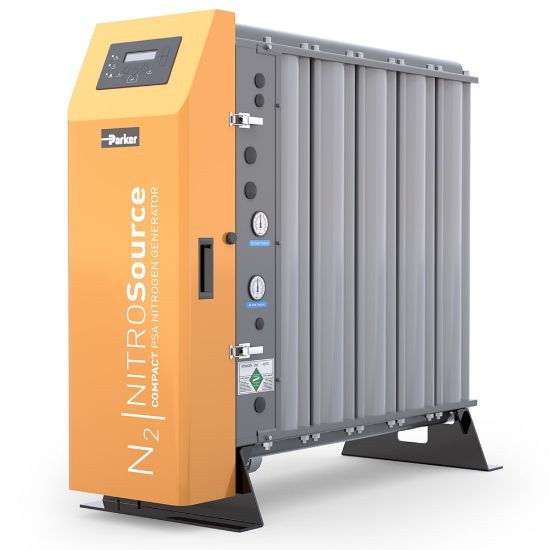

NITROSource Compact Nitrogen Gas Generator (5% to 10 pmm maximum remaining oxygen content) - N2C-10-HZ-00A

Name: NITROSource Compact Nitrogen Gas Generator (5% to 10 pmm maximum remaining oxygen content) - N2C-10-HZ-00A
SKU: N2C-10-HZ-00A

The compact, cost-effective, reliable and safe on-site nitrogen gas generation solution for small to medium flow requirements. NITROSource Compact provides nitrogen gas of 95% to 99.999% equivalent nitrogen purity.

Availability:

Backordered

SKU N2C-10-HZ-00A

POR

Qty:

Products specifications

Attribute name	Attribute value
Gas Purity	High	Flow Rate	7.3 to 22.5 m³/h @ 7 barg
Oxygen Content	100 ppm to 1%	Oxygen Analyzer Included	Zirconia
Brand	PARKER	Technology	Filtration
Division	Gas Separation and Filtration Division EMEA	Division	Gas Separation and Filtration Division EMEA
Port Type	BSPP	Industry	Industrial Manufacturing Equipment
Application	Industrial	Weight	360
Ingress Protection Rating	IP20	Electrical Requirements	YES
Product Type	Nitrogen Gas Generator	Noise Level	< 80
Depth	1134	Width	450.0
Height	1040	Input Voltage	100 to 240 VAC ±10%, 50/60 Hz
Product Series	NITROSource Compact PSA	Inlet Port Size	½"
Outlet Port Size	½"	Ambient Temperature	5 to 50
Inlet Pressure Rating	6 to 10	Inlet Air Quality Specifications	ISO 8573-1: 2010 Class 2.4.1

Product resources

Literature and Reference Materials

Product Information Sheet - NITROSource Compact Nitrogen Gas Generators - (English) (PDF)
