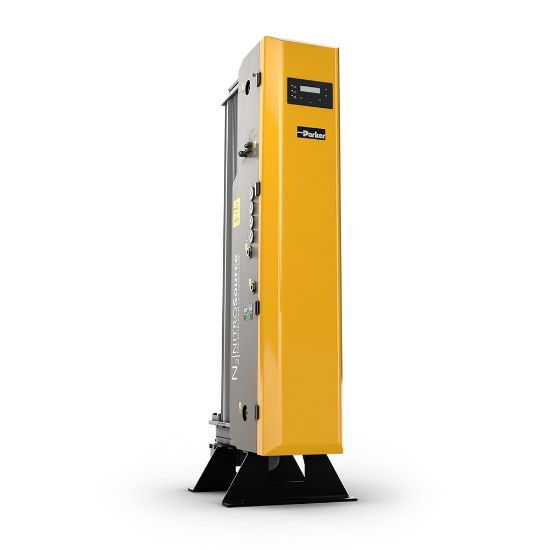

Picture of NITROSource PSA Nitrogen Gas Generator (5% to 5 ppm maximum remaining oxygen content) for North America - N2-35PBLY

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

NITROSource PSA Nitrogen Gas Generator (5% to 5 ppm maximum remaining oxygen content) for North America - N2-35PBLY

Advanced technology nitrogen gas generator for industry leading performance; a source of increased productivity, sustainability and profitability. NITROSource provides nitrogen gas of 95% to 99.9995% equivalent nitrogen purity.
Availability:
Backordered
SKU N2-35PBLY
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Flow Rate876 to 2105 SCFH @ 101.5 psi g (7 bar g)Flow RangeLow (Less than 2119 SCFH)
Gas PurityLow (0.1% to 5%)Energy SavingYes
Oxygen Content0.1 to 5%BrandPARKER
TechnologyFiltrationDivisionIndustrial Gas Filtration and Generation Division
Port TypeNPTApplicationIndustrial
Electrical RequirementsYESProduct TypeNitrogen Gas Generator
Gas Type GeneratedNitrogenIndustryFiltration
Flow Rate24.8 to 67.4Depth48 in (1219 mm)
Width21.7 in (550 mm)Height74.6 in (1894 mm)
Weight1034 lb (469 Kg)DivisionIndustrial Gas Filtration & Generation
Gas PurityLowNoise Level< 80
Energy SavingYesInput Voltage100 - 240 +/- 10% Vac 50/60Hz
Oxygen Content0.1% to 3%Product SeriesNITROSource PSA
Inlet Port Size1Outlet Port Size1/2
Ambient Temperature41-122°F (5 - 50°C)Inlet Pressure Rating73-189 psi g (5-13 bar g)
Ingress Protection RatingIP20 / NEMA 1Inlet Air Quality SpecificationsISO 8573-1: 2010 Class 2.2.2 (2.2.1 with high oil vapor content)
