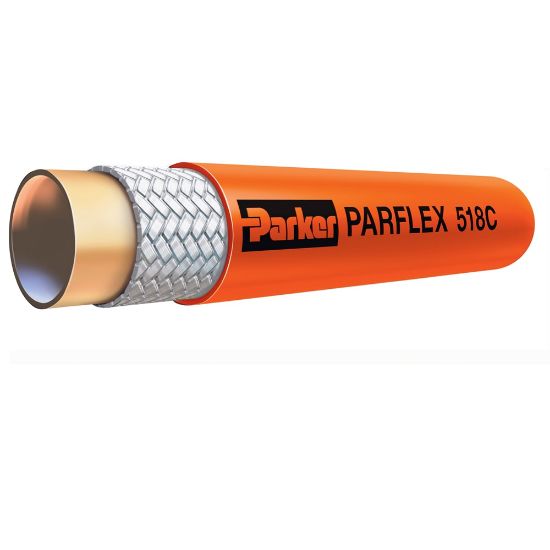

Picture of Non-Conductive Thermoplastic Hoses - 518D - 518C-16

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Non-Conductive Thermoplastic Hoses - 518D - 518C-16

Parker’s Non-Conductive 100R7 hose has a high-density braid to handle maximum impulse life. Most 518D sizes feature a nylon core tube. Available as a formed hose and/or bonded hose.
Availability:
Backordered
SKU 518C-16
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (inch)1Material - Hose Inner TubeOBSOLETE: Copolyester
DivisionParflex DivisionMinimum Operating Temperature-40
Design Factor4:1Maximum Operating Temperature212
Cover MaterialPolyurethaneCompatible Fitting56 Series
Hose Reinforcement MaterialFiberApplicationHydraulics
Inside Diameter1Minimum Bend Radius8
Maximum Operating Pressure1000Weight0.27
Size-16MediaPetroleum Hydraulic Fluids
Outside Diameter1.320Specifications MetANSI A92.2
Hose Inner Tube MaterialCopolyester
