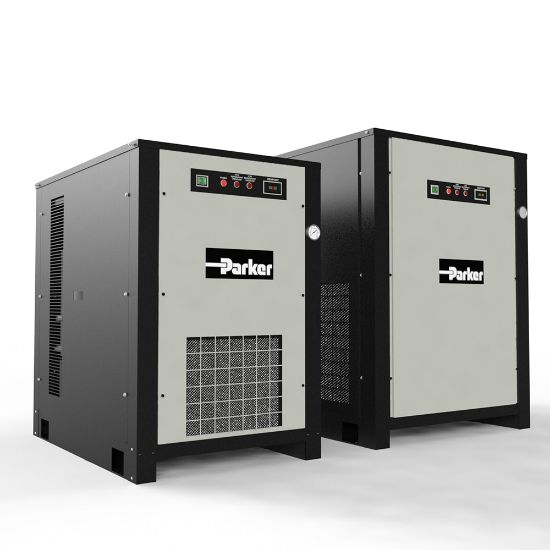

Picture of Non-Cycling Refrigerated Air Dryer - PNC Series - PNC0400-A3-D2

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Non-Cycling Refrigerated Air Dryer - PNC Series - PNC0400-A3-D2

Note: This product is no longer available - please refer to the PoleStar Smart-E (PSE) Series Cycling Refrigerated Compressed Air Dryers for current offering.
Availability:
Backordered
SKU PNC0400-A3-D2
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Electrical Requirements230V/3Ph/60HzPre-Installed Optional AccessoriesDryer + Pre & After Filter (shipped loose)
Maximum Flow Rate (cfm)400Pressure Dew Point (F)≤ 44.6
Maximum Flow Rate679.6Minimum Operating Pressure50
Height42.1Connection Type2" NPT
Compatible After Filter ElementP040AAWidth28.4
Weight441Minimum Ambient Temperature41
Compatible PrefilterAOP040HNFIRefrigerant TypeR404A
Maximum Inlet Pressure Rating100Product TypeCompressed Air – Refrigerated
Compatible Prefilter ElementP040AODivisionIndustrial Gas Filtration and Generation Division
Maximum Ambient Temperature115BrandPARKER
Compatible After FilterAAP040HNFIMaximum Operating Temperature140
Maximum Operating Pressure200Installed Condensate Drain TypeTimed Drain
Minimum Operating Temperature41Depth42.4
