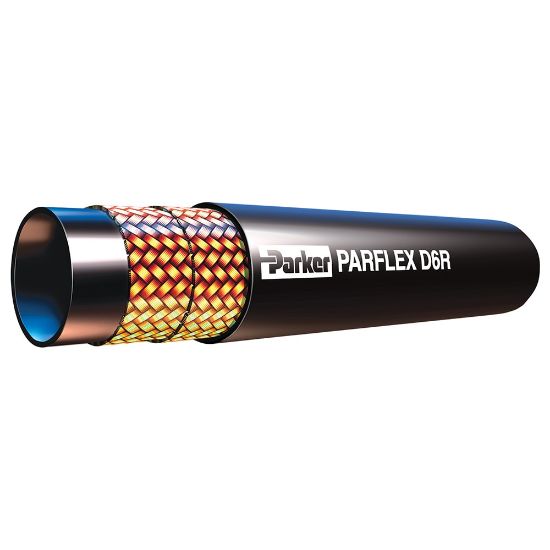

OBSOLETE - 100R17 Hose - D6R/D6RX - D6RX-08

Name: OBSOLETE - 100R17 Hose - D6R/D6RX - D6RX-08
SKU: D6RX-08

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:

Backordered

SKU D6RX-08

POR

Qty:

Products specifications

Attribute name	Attribute value
Hose I.D. (inch)	1/2	Division	Parflex Division
Minimum Operating Temperature	-40 °C	Design Factor	4:1
Size	-8	Inside Diameter	1/2 inch
Compatible Fitting	56 Series	Minimum Bend Radius	76.2 mm
Maximum Operating Temperature	121 °C	Cover Structure	Smooth
Cover Material	Synthetic Rubber	Maximum Operating Pressure	21 MPa
Media	Lubricants	Hose Reinforcement Material	2 Braids of High Tensile Wire
Product Type	Hydraulic Hose	Weight	0.38 kg/m
Application	Industrial Machinery	Specifications Met	MSHA
Hose Inner Tube Material	Copolyester	Outside Diameter	0.780 inch
Package Type	Continuous Reel
