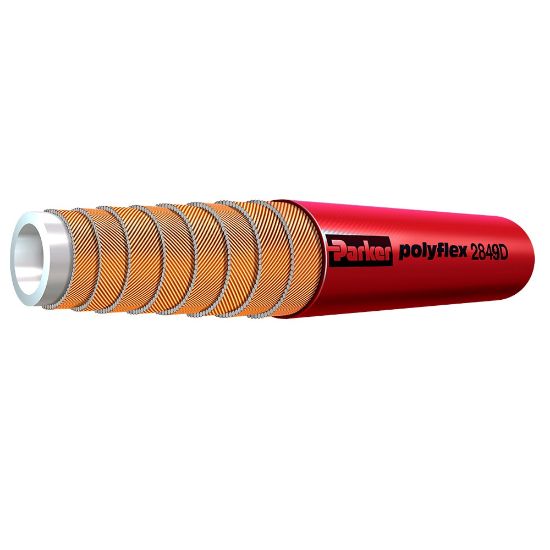

Picture of OBSOLETE: 2849D UHP Hose- 55,000 psi - 2849D-05V34

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

OBSOLETE: 2849D UHP Hose- 55,000 psi - 2849D-05V34

Note: This product is no longer available – please contact us for further assistance.
Availability:
Backordered
SKU 2849D-05V34
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionParflex DivisionMinimum Operating Temperature-10 °C
MediaWaterOutside Diameter0.770 inch
Cover MaterialPolyamide (PA)Inside Diameter5/16 inch
Maximum Operating Temperature158 °FSpecifications MetDIN 1829-2
Hose Inner Tube MaterialPolyoxymethylene (POM)Size-5
Weight0.79 lb/ftApplicationWater Jet Cutting
Design Factor2:1Compatible FittingWX Series
Maximum Operating Pressure55000 psiMinimum Bend Radius11.02 inch
Hose Reinforcement Material8 Spirals of Maximum Tensile Steel Wire
