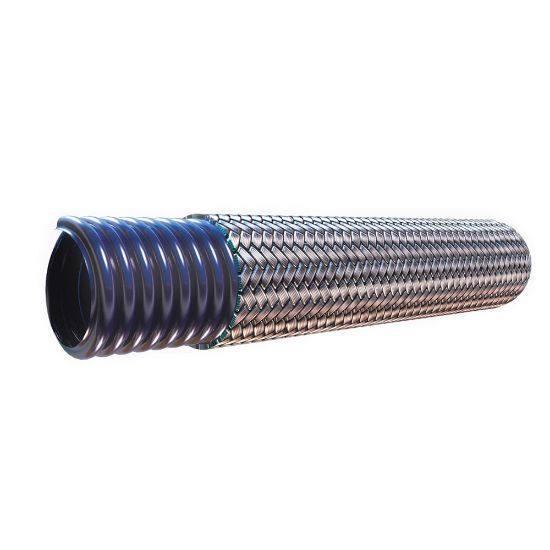

Picture of OBSOLETE: Heavy Wall Convoluted PTFE Hose with 316 Stainless Steel Braid - SCWV/SCBV - 08-SCBV

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

OBSOLETE: Heavy Wall Convoluted PTFE Hose with 316 Stainless Steel Braid - SCWV/SCBV - 08-SCBV

Note: This product is no longer available - please contact us for further assistance.
Availability:
Backordered
SKU 08-SCBV
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (inch)1/2Hose StyleStatic Dissipative, Stainless Steel Braid
DivisionParflex DivisionMediaAir
ApplicationFluid HandlingCover Materialn/a
Compatible FittingPAGE SeriesSpecifications MetUSP Class VI (compliant core tube)
Hose Inner Tube MaterialPolytetrafluoroethylene (PTFE) Static DissipativeDesign Factor4:1
Vacuum Pressure Rating28Maximum Operating Temperature500
Size-8Weight0.17
Inside Diameter1/2Outside Diameter0.760
Minimum Bend Radius2Maximum Operating Pressure1500
Hose Reinforcement MaterialBraid of 316 Stainless SteelMinimum Operating Temperature-100
