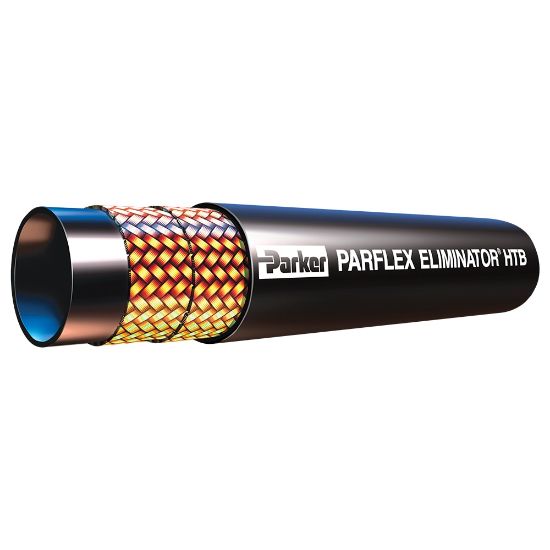

Picture of OBSOLETE: MSHA Hydraulic Hose - HTB/HTBR - HTB04

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

OBSOLETE: MSHA Hydraulic Hose - HTB/HTBR - HTB04

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.
Availability:
Backordered
SKU HTB04
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (inch)1/4LengthObsolete
Cover MaterialSynthetic RubberSpecifications MetMSHA
Outside Diameter0.620Cover StructureSmooth
ApplicationAgriculture EquipmentMaximum Operating Pressure7000
Compatible FittingHY SeriesHose Reinforcement Material2 Braids of High Tensile Wire
Minimum Operating Temperature-40Maximum Operating Temperature212
Design Factor4:1Size-4
Minimum Bend Radius4Hose Inner Tube MaterialCopolyester
LengthView Part Details.Inside Diameter1/4
Weight0.27MediaLubricants (Oils)
DivisionParflex Division
