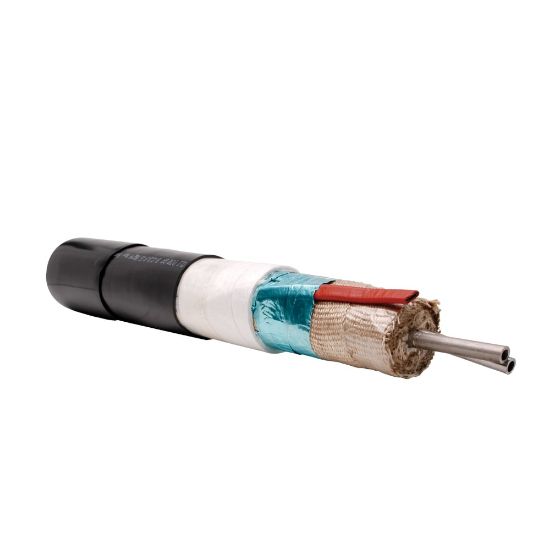

OBSOLETE: Multitube® CS – Continuous Steam Purge Bundles - CS-B0849B-912A-V8N

Name: OBSOLETE: Multitube® CS – Continuous Steam Purge Bundles - CS-B0849B-912A-V8N
SKU: CS-B0849B-912A-V8N

Note: This product is no longer available - please contact us for further assistance.

Availability:

Backordered

SKU CS-B0849B-912A-V8N

POR

Qty:

Products specifications

Attribute name	Attribute value
Tube O.D. (inch)	1/2	Number of Tubes	2
Tubing Material	Seamless Stainless Steel Type 316/316L ASTM A269	Maximum Steam Purge Temperature (F)	950
Division	Parflex Division	Tube Outside Diameter	1/2
Cover Color	Black	Cover Material	FR-PVC
Number of Tubes	2	Specifications Met	General Purpose/Class I, Division 2 Areas
Minimum Bend Radius	16	Tube Material	Seamless Stainless Steel Type 316/316L ASTM A269
Heat Output	15	Input Voltage	120
Nominal Outside Diameter	2.69	Maximum Ambient Temperature	80
Minimum Ambient Temperature	-40	Maximum Steam Purge Temperature	950
Maximum Cover Surface Temperature	180
