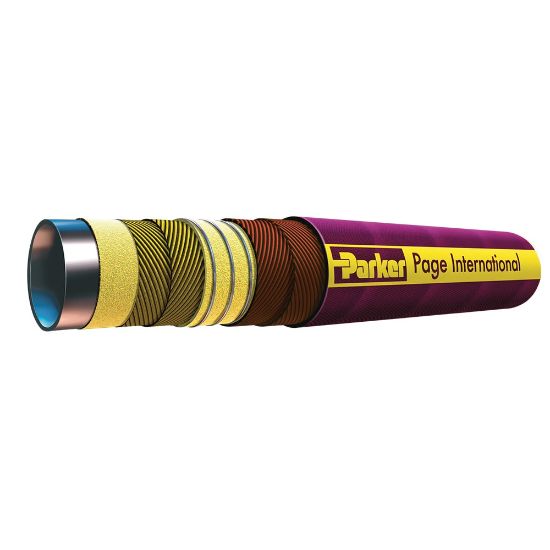

OBSOLETE: Smoothbore Fluoropolymer Hose with EPDM Rubber Cover - RCTW/RCTB - 12-RCTB

Name: OBSOLETE: Smoothbore Fluoropolymer Hose with EPDM Rubber Cover - RCTW/RCTB - 12-RCTB
SKU: 12-RCTB

Note: This product is no longer available - please contact us for further assistance.

Availability:

Backordered

SKU 12-RCTB

POR

Qty:

Products specifications

Attribute name	Attribute value
Hose Style	Static Dissipative	Hose I.D. (inch)	3/4
Division	Parflex Division	Minimum Operating Temperature	-40
Media	Chemicals (Paint)	Compatible Fitting	PAGE Series
Hose Inner Tube Material	Natural	Application	Pharmaceutical
Maximum Operating Temperature	300	Design Factor	n/a
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Specifications Met	ISO 10993, Sections 5, 6, 10, 11
Minimum Bend Radius	3	Vacuum Pressure Rating	762
Maximum Operating Pressure	500	Hose Reinforcement Material	Multiple Layers of Rubber with Double Wire Helix
Size	-12	Inside Diameter	3/4
Weight	0.51	Outside Diameter	0.510
