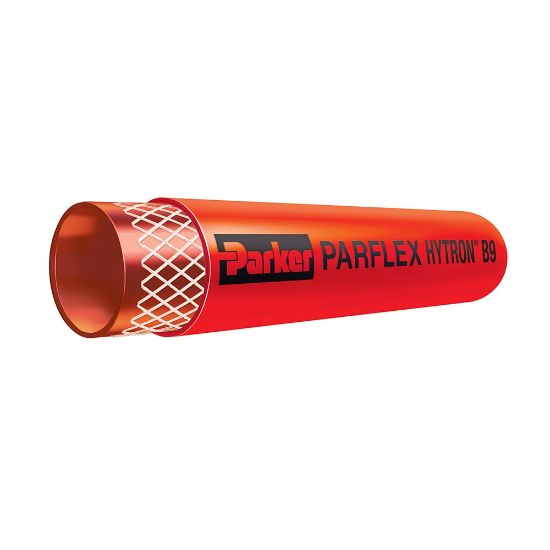

OBSOLETE: Transfer Hose - B9 - B905

Name: OBSOLETE: Transfer Hose - B9 - B905
SKU: B905

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:

Backordered

SKU B905

POR

Qty:

Products specifications

Attribute name	Attribute value
Color	Red	Hose I.D. (inch)	0.3125
Weight	0.08	Cover Material	Polyurethane Specially Formulated
Minimum Operating Temperature	-40	Inside Diameter	5/16
Division	Parflex Division	Specifications Met	N/A
Compatible Fitting	56 Series	Design Factor	4:1
Outside Diameter	0.550	Application	Fluid Handling
Maximum Operating Pressure	250	Media	Air
Minimum Bend Radius	2	Maximum Operating Temperature	200
Hose Reinforcement Material	Fiber	Hose Inner Tube Material	Specially Formulated Polyurethane
Vacuum Pressure Rating	28	Size	-5
