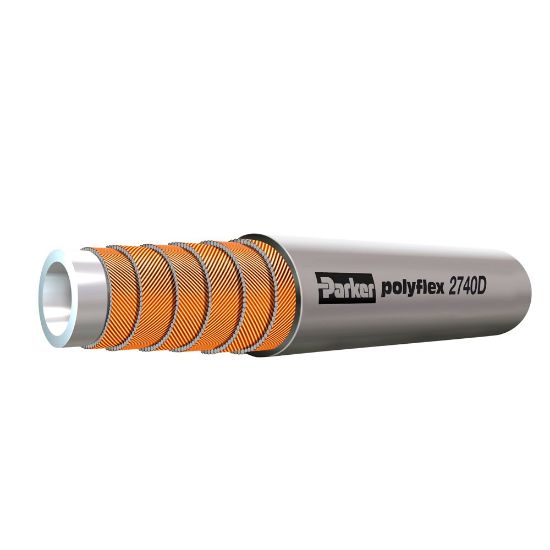

Picture of OBSOLETE: Water Jetting Hose - 35,000 psi and up - 2740D-05V37

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

OBSOLETE: Water Jetting Hose - 35,000 psi and up - 2740D-05V37

Note: This product is no longer available – please contact us for further assistance.
Availability:
Backordered
SKU 2740D-05V37
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (inch)5/16Maximum Working Pressure (psi)36,230
NotesObsoleteDivisionParflex Division
MediaChemicalsMinimum Bend Radius8
Cover MaterialPolyamide (PA)Inside Diameter5/16
Design Factor2.5:1Maximum Operating Temperature158
Specifications MetDIN 1829-2Minimum Operating Temperature14
Hose Inner Tube MaterialPolyoxymethylene (POM)Size-5
Compatible Fitting2X SeriesHose Reinforcement Material6 Spirals of Maximum Tensile Steel Wire
Weight0.80ApplicationHigh Pressure Cleaning
Outside Diameter0.680Maximum Operating Pressure36230
