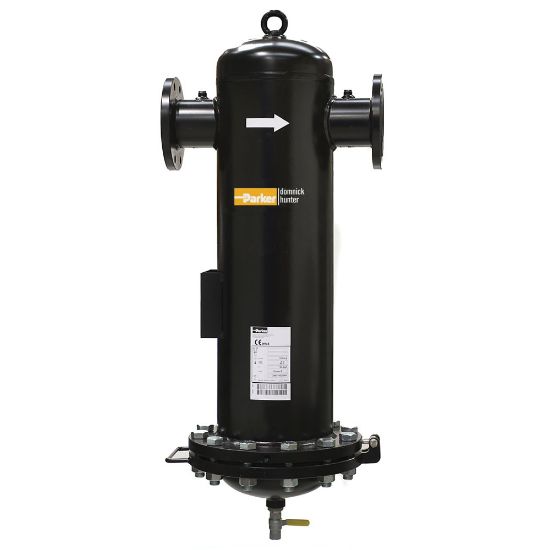

OIL-X Carbon Steel Fabricated Compressed Air Filter (For Pressures Up To 16 bar g) - AA080PDEX

Name: OIL-X Carbon Steel Fabricated Compressed Air Filter (For Pressures Up To 16 bar g) - AA080PDEX
SKU: AA080PDEX

High efficiency compressed air filters for applications requiring large flow rates up to 31248 m³/hr @ 7 bar g with a maximum operating pressure of 16 bar g.

Availability:

Backordered

SKU AA080PDEX

POR

Qty:

Products specifications

Attribute name	Attribute value
Micron Rating	Down to 0.01 micron	Options	None
Filter Type	High Efficiency Coalescing	Drain	Electronic
Maximum Flow Rate	8928 m³/h @ 7 barg	Maximum Flow Rate (cfm)	5251 cfm @ 100 psig
Brand	PARKER	Division	Gas Separation and Filtration Division EMEA
Maximum Operating Temperature	140 °F	Minimum Operating Temperature	2 °C
Width	650 mm	Maximum Operating Pressure	16 barg
Connection Type	DIN Flange	Depth	22.8 inch
Height	1332 mm	Weight	412 lb
Maximum Flow Rate	5251 CFM at 100 psig	Minimum Operating Pressure	15 psig
Port Connection	DN150 psig
