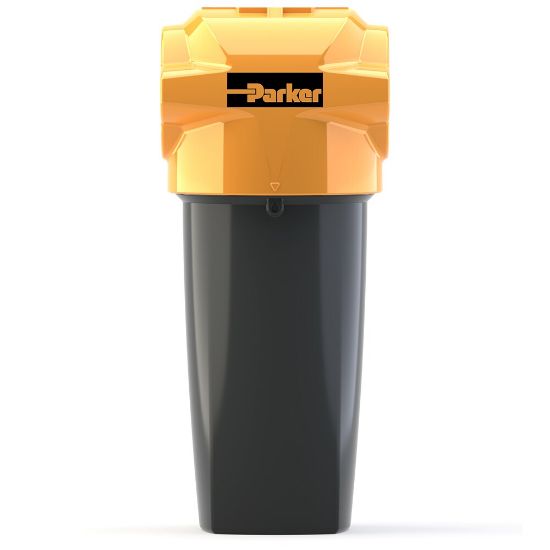

Picture of OIL-X Compressed Air Filter (For Pressures up to 16 and 20 bar g) - AAPX030EGFX

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

OIL-X Compressed Air Filter (For Pressures up to 16 and 20 bar g) - AAPX030EGFX

High efficiency coalescing and dry particulate filters with very low pressure drop providing excellent energy savings.
Availability:
Backordered
SKU AAPX030EGFX
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Port Size1 inchMicron RatingDown to 0.01 micron
Connection TypeBSPPFilter TypeHigh Efficiency Coalescing
Maximum Flow Rate396 m³/h @ 7 barg (233 cfm @ 102 psig)BrandPARKER
TechnologyFiltrationDivisionGas Separation and Filtration Division EMEA
DivisionGas Separation and Filtration Division EMEAElement Change Interval12 Months
Product TypeCompressed Air FilterDepth115.0 mm
DrainAutomatic FloatWidth120.0 mm
Height14.45 inchWeight6.63 lb
ApplicationIndustrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & DentalProduct SeriesOIL-X Grade AA
Compatible ElementP030AAOperating Pressure22 to 232 psig
Specifications MetFully tested - In accordance with ISO12500-1 / ISO8573-2 for oil aerosol and ISO8573-4 for particulate.<br/> <br/>Filtration performance independently validated - by Lloyds Register. <br/> <br/>PED 2014/68/EU Fluid Group II.Residual Oil Content0.01 mg/m³ / 0.01 ppm(w) <br/>@ 21°C (70°F)
Operating Temperature35 to 149 °FPressure Differential122.0
Filter Efficiency Rating99.9999 %Materials of ConstructionDie Cast Aluminium
