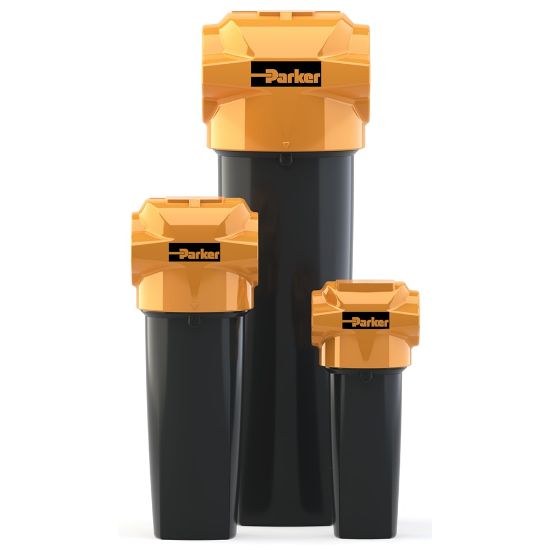

Picture of OIL-X Compressed Air Filter (For Pressures up to 16 and 20 bar g) - AAPX060KGMX

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

OIL-X Compressed Air Filter (For Pressures up to 16 and 20 bar g) - AAPX060KGMX

High efficiency coalescing and dry particulate filters with very low pressure drop providing excellent energy savings.
Availability:
Backordered
SKU AAPX060KGMX
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Micron RatingDown to 0.01 micronConnection TypeBSPP
Filter TypeDry ParticulatePort Size4 inch
Maximum Flow Rate3600 m³/h @ 7 barg (2119 cfm @ 102 psig)BrandPARKER
TechnologyFiltrationDivisionGas Separation and Filtration Division EMEA
DivisionGas Separation and Filtration Division EMEAElement Change Interval12 Months
Product TypeCompressed Air FilterDepth282.0 mm
DrainManualWidth16.54 inch
Height847.0 mmWeight44.50 kg
ApplicationIndustrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & DentalProduct SeriesOIL-X Grade AA
Compatible ElementP060AA<br/>(3 Elements)Operating Pressure15 to 290 psig
Specifications MetFully tested - In accordance with ISO12500-1 / ISO8573-2 for oil aerosol and ISO8573-4 for particulate.<br/> <br/>Filtration performance independently validated - by Lloyds Register. <br/> <br/>PED 2014/68/EU Fluid Group II.Residual Oil ContentNot Applicable
Operating Temperature2 to 100 °CPressure Differential1.0
Filter Efficiency Rating99.9999 %Materials of ConstructionDie Cast Aluminium
