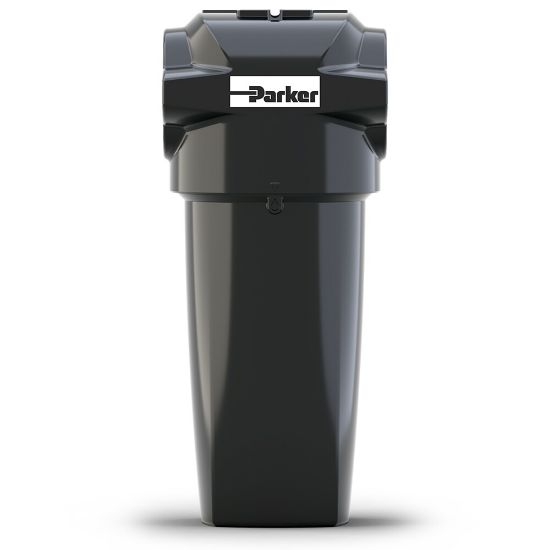

Picture of OIL-X Grade WS Compressed Air Water Separator (For Pressures Up To 16 barg) - WSPX030GNFX

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

OIL-X Grade WS Compressed Air Water Separator (For Pressures Up To 16 barg) - WSPX030GNFX

Die cast aluminium water separators for the efficient removal of bulk liquid contamination from a compressed air supply, providing flow rates up to 3600 m³/h @ 7 bar g.

Availability:
Backordered
SKU WSPX030GNFX
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Electrical RequirementsN/ADrain OptionAutomatic Float
Port Size1½ inchConnection TypeNPT
Maximum Flow Rate396 m³/h @ 7 barg (233 cfm @ 102 psig)Filter TypeWater Separator
Product SeriesOIL-X Grade WSDivisionGas Separation and Filtration Division EMEA
IndustryIndustrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & DentalPressure Differential82.0 mbar Initial Saturated, 100% Flow
ApplicationCompressed Air and Nitrogen Gas ApplicationsDepth4.53 inch
BrandPARKEROperating Temperature2 to 60 °C
DivisionGas Separation and Filtration Division EMEAOperating Pressure22 to 232 psig
Width4.72 inchProduct TypeCompressed Air Filter
TechnologyFiltrationMaterials of ConstructionDie Cast Aluminium
Weight2.66 kgSpecifications MetFully tested - In accordance with ISO12500-4 & ISO8573-9 for liquid water. <br/><br/>Separation performance independently validated - by Lloyds Register.<br/><br/>PED 2014/68/EU Fluid Group II
Height368.0 mmMicron Ratingn/a
