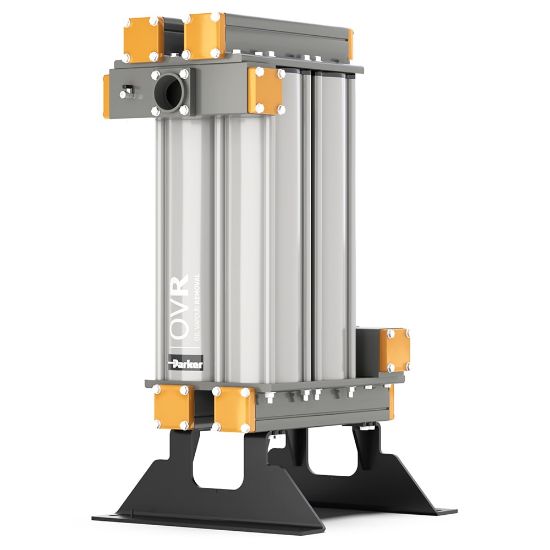

Picture of OIL-X OVR Oil Vapour Reduction Filter - OVRP400INXX

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

OIL-X OVR Oil Vapour Reduction Filter - OVRP400INXX

Compact, modular construction oil vapour removal filters designed to reduce oil vapour when industrial applications require compressed air to meet ISO8573-1 Class 0 or Class 1.
Availability:
Backordered
SKU OVRP400INXX
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Maximum Flow Rate1172 m³/h @ 7 barg (690 cfm @ 102 psig)Port Size2 inch
Connection TypeNPTDivisionGas Separation and Filtration Division EMEA
DrainNot ApplicableWidth21.7 inch
Product SeriesOIL-X OVRIndustryIndustrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental
Residual Oil Content≤0.003 mg/m³ / ≤0.003 ppm(w) at system operating temperature and when corrected to match system conditions.Pressure Differential350.0
Weight205 lbDepth682.0 mm
Element Change Interval12 months when sized to correct operating temperature and system conditions.Operating Pressure1 to 16 barg
Filter TypeAdsorption:<br/>Oil Vapour ReductionApplicationCompressed Air and Nitrogen Gas Applications
Height41.8 inchMicron Ratingn/a
Compatible ElementP400OVRTechnologyFiltration
Product TypeCompressed Air FilterOperating Temperature35 to 122 °F
BrandPARKERDivisionGas Separation and Filtration Division EMEA
Specifications MetFully tested - In accordance with ISO8573-5<br/>Filtration performance independently validated - by Lloyds Register. <br/> <br/>PED 2014/68/EU Fluid Group II
