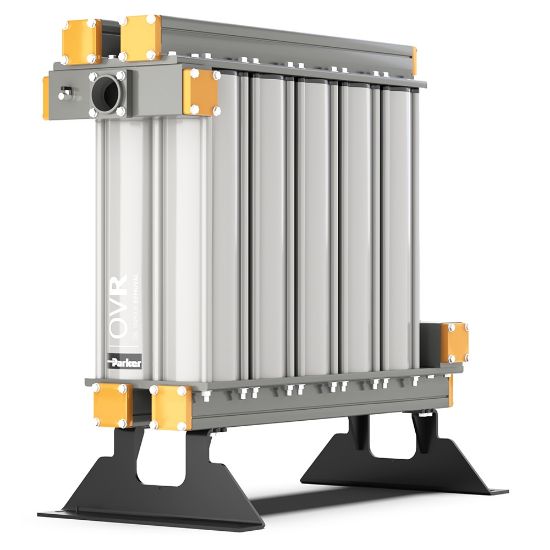

Picture of OIL-X OVR Oil Vapour Reduction Filter - OVRP500IGXX

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

OIL-X OVR Oil Vapour Reduction Filter - OVRP500IGXX

Compact, modular construction oil vapour removal filters designed to reduce oil vapour when industrial applications require compressed air to meet ISO8573-1 Class 0 or Class 1.
Availability:
Backordered
SKU OVRP500IGXX
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Connection TypeBSPPMaximum Flow Rate2345 m³/h @ 7 barg (1380 cfm @ 102 psig)
Port Size2½ inchResidual Oil Content≤0.003 mg/m³ / ≤0.003 ppm(w) at system operating temperature and when corrected to match system conditions.
IndustryIndustrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & DentalDepth39.6 inch
Operating Temperature2 to 50 °CPressure Differential5.1 psi Initial Dry, 100% Flow
Weight318 lbElement Change Interval12 months when sized to correct operating temperature and system conditions.
Operating Pressure1 to 16 bargFilter TypeAdsorption:<br/>Oil Vapour Reduction
Compatible ElementP500OVRApplicationCompressed Air and Nitrogen Gas Applications
Height1062.0 mmTechnologyFiltration
Micron Ratingn/aDivisionGas Separation and Filtration Division EMEA
BrandPARKERProduct TypeCompressed Air Filter
Specifications MetFully tested - In accordance with ISO8573-5<br/>Filtration performance independently validated - by Lloyds Register. <br/> <br/>PED 2014/68/EU Fluid Group IIDivisionGas Separation and Filtration Division EMEA
DrainNot ApplicableWidth21.7 inch
Product SeriesOIL-X OVR
