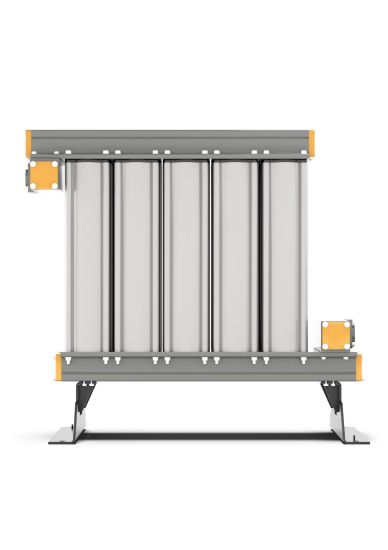

Picture of OIL-X OVR Oil Vapour Reduction Filter - OVRP500INXX

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

OIL-X OVR Oil Vapour Reduction Filter - OVRP500INXX

Compact, modular construction oil vapour removal filters designed to reduce oil vapour when industrial applications require compressed air to meet ISO8573-1 Class 0 or Class 1.
Availability:
Backordered
SKU OVRP500INXX
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Maximum Flow Rate2345 m³/h @ 7 barg (1380 cfm @ 102 psig)Port Size2½ inch
Connection TypeNPTWidth550.0 mm
Specifications MetFully tested - In accordance with ISO8573-5<br/>Filtration performance independently validated - by Lloyds Register. <br/> <br/>PED 2014/68/EU Fluid Group IIBrandPARKER
TechnologyFiltrationHeight41.8 inch
Product TypeCompressed Air FilterMicron Ratingn/a
DivisionGas Separation and Filtration Division EMEAElement Change Interval12 months when sized to correct operating temperature and system conditions.
Operating Temperature35 to 122 °FProduct SeriesOIL-X OVR
DivisionGas Separation and Filtration Division EMEADrainNot Applicable
Operating Pressure15 to 232 psigCompatible ElementP500OVR
Pressure Differential5.1Weight144 kg
ApplicationCompressed Air and Nitrogen Gas ApplicationsFilter TypeAdsorption:<br/>Oil Vapour Reduction
Residual Oil Content≤0.003 mg/m³ / ≤0.003 ppm(w) at system operating temperature and when corrected to match system conditions.IndustryIndustrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental
Depth39.6 inch
