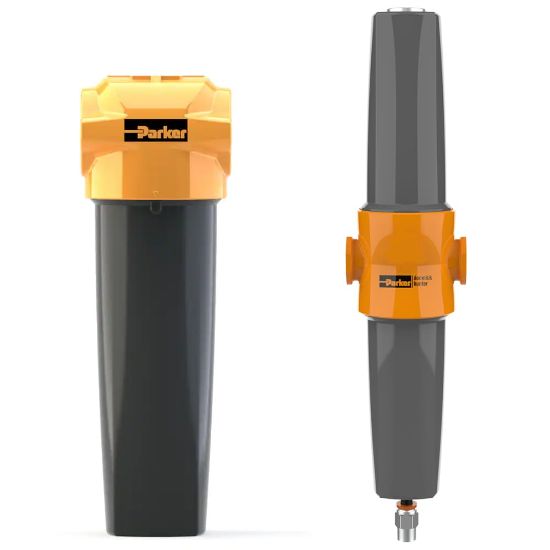

Picture of OIL-X 'Point Of Use' Oil Vapour Reduction Filters - ACSPX060KGMX

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

OIL-X 'Point Of Use' Oil Vapour Reduction Filters - ACSPX060KGMX

Activated carbon filters for the reduction of oil vapour and hydrocarbon odours, providing a maximum remaining oil content of <0.003mg/m³ (<0.003ppm) @ 21°C (70°F).
Availability:
Backordered
SKU ACSPX060KGMX
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute name Attribute value
Connection Type BSPP Drain Manual
Port Size 4 inch Maximum Flow Rate 3600 m³/h @ 7 barg (2119 cfm @ 102 psig)
Filter Stages Single Stage Brand PARKER
Technology Filtration Division Gas Separation and Filtration Division EMEA
Division Gas Separation and Filtration Division EMEA Industry Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental
Application Compressed Air and Nitrogen Gas Applications Micron Rating n/a
Width 420.0 mm Product Type Compressed Air Filter
Depth 11.10 inch Weight 44.50 kg
Operating Pressure 1 to 20 barg Materials of Construction Die Cast Aluminium
Filter Type Oil Vapour Reduction Product Series OIL-X Grades ACS and AC
Height 33.3 inch Specifications Met Fully tested - In accordance with ISO8573-5<br/><br/>Filtration performance independently validated - by Lloyds Register.<br/><br/>PED 2014/68/EU Fluid Group II
Operating Temperature 35 to 122 °F Compatible Element P060ACS
Residual Oil Content 0.003 mg/m³ / 0.003 ppm(w) <br/>@ 21°C (70°F) Element Change Interval When oil vapour is detected
Pressure Differential 1.2 psi Initial Dry, 100% Flow
