Picture of OIL-Xplus 0003G Low Flow Compressed Air Filter (For pressures up to 10.5 bar g) - AO-0003G

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

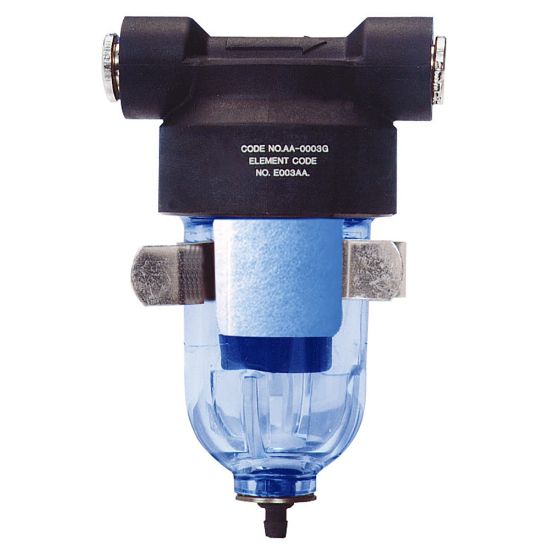

OIL-Xplus 0003G Low Flow Compressed Air Filter (For pressures up to 10.5 bar g) - AO-0003G

High efficiency compressed air filters for applications requiring very low flow rates, up to 11 m³/hr @ 7 bar g, with a maximum operating pressure of 10.5 bar g.
Availability:
Backordered
SKU AO-0003G
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Filter TypeCoalescingMicron Rating1 micron
Maximum Flow Rate6Branddomnick hunter
DivisionGas Separation and Filtration Division EMEAElement Change Interval12 Months
Maximum Operating Temperature122 °FMaximum Operating Pressure145 psig
Connection Type8mm - G¼ Push FitWidth58 mm
Height89 mmWeight0.2 lb
Compatible ElementK003AOResidual Oil Content0.6 mg/m³ (0.5 ppm) @ 21°C (70°F)
Minimum Operating Temperature1.5 °C
