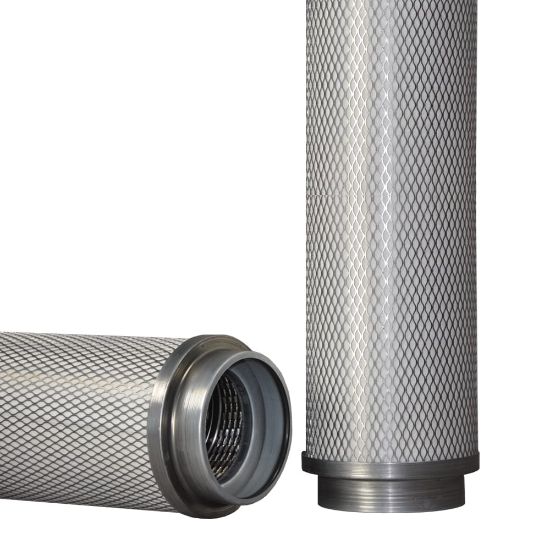

Picture of P-CEPTOR™ NGGC Gas Coalescer Cartridge - 22097

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

P-CEPTOR™ NGGC Gas Coalescer Cartridge - 22097

P-Ceptor™ NGGC Gas Coalescers use pleated, treated glass media to provide effective removal of small aerosol mist and liquid droplets from natural gas streams.
Availability:
Backordered
SKU 22097
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
End Cap MaterialTin-Plated SteelSeal MaterialViton
Core Material304SSBody MaterialExpanded Metal
Cartridge Length39.5625"End Cap ConfigurationSOE - Closed top w/ bolt hole, open bottom w/ internal 347 o-ring
Nominal Inside Diameter4.1"Nominal Outside Diameter5.5"
DivisionIndustrial Process Filtration DivisionBrandPECO
DivisionIndustrial Process Filtration DivisionTechnologyFiltration
Product TypeFilter CartridgeFilter ConstructionPleated
IndustryOil and GasApplicationGas Coalescing
Flow DirectionInside-to-OutsidepH Range3-9
Micron RatingPL-51: 99.97% ≥ 0.3 Liquid DropletsProduct SeriesNGGC
Filter MaterialGlassQuantity per Box1
Maximum Pressure Differential25Changeout Pressure Differential12 to 14
Model NumberELMT NGGC-539-IC-003FV-347-RT PL-51Maximum Operating Temperature240
