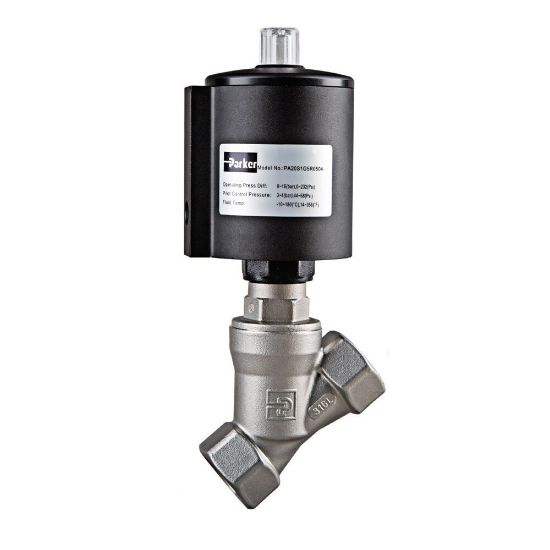

Picture of PA Series Angle Seat Valves - PA10SAN3S050A

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

PA Series Angle Seat Valves - PA10SAN3S050A

2-way pneumatically-actuated Angle Seat Valves (ASV) available in on/off and proportional control models. Optional position feedback technologies are also available.
Availability:
Backordered
SKU PA10SAN3S050A
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Port Size3/8 inchFunction2-Way
Body Material304 Stainless SteelConfigurationNormally Closed - Under Seat Anti-Waterhammer
Maximum Steam PressureN/AMinimum Pilot Pressure65.3 psi
Actuator Housing MaterialAluminiumMaximum Operating Pressure232 psi
BrandPARKERTechnologyFluid & Gas Handling
DivisionFluid Control DivisionSeal MaterialPTFE
Maximum Operating Temperature140 °FConnection TypeNPT
Function2-WayConnection Size3/8 inch
Body Material304 Stainless SteelFor Fluid Typeand Liquids
Specifications MetEuropean Pressure Equipmemt Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1Maximum Operating Pressure232.0 psi
DivisionFluid Control DivisionConfigurationNormally Closed - Under Seat Anti-Waterhammer
Product TypeAngle ValveProduct StylePneumatic - On/Off
Materials of ConstructionAluminium (Actuator Housing)Orifice Size0.51
Signal Inputn/aActuator Size50 mm
Actuation TypeAir PilotFlow Coefficient5.5 Cv
Maximum Pilot Pressure145 psiMinimum Pilot Pressure65.3 psi
Maximum Fluid Temperature356 °FMinimum Operating Pressure0 psi
