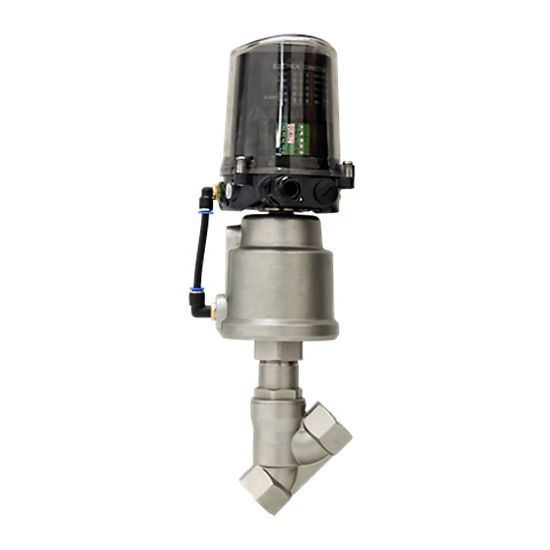

PA Series Angle Seat Valves - PA15SAN4R063A-PR

Name: PA Series Angle Seat Valves - PA15SAN4R063A-PR
SKU: PA15SAN4R063A-PR

2-way pneumatically-actuated Angle Seat Valves (ASV) available in on/off and proportional control models. Optional position feedback technologies are also available.

Availability:

Backordered

SKU PA15SAN4R063A-PR

POR

Qty:

Products specifications

Attribute name	Attribute value
Port Size	1/2 inch	Function	2-Way
Body Material	316L Stainless Steel	Configuration	Normally Closed - Under Seat Anti-Waterhammer
Maximum Steam Pressure	130 psi	Minimum Pilot Pressure	58.0 psi
Actuator Housing Material	Aluminium	Maximum Operating Pressure	232 psi
Brand	PARKER	Technology	Fluid & Gas Handling
Division	Fluid Control Division	Seal Material	PTFE
Maximum Operating Temperature	140 °F	Connection Type	NPT
Body Material	316L Stainless Steel	Connection Size	1/2 inch
Function	2-Way	For Fluid Type	Liquids
Specifications Met	European Pressure Equipmemt Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1	Maximum Operating Pressure	232.0 psi
Division	Fluid Control Division	Configuration	Normally Closed - Under Seat Anti-Waterhammer
Product Type	Angle Valve	Materials of Construction	Aluminium (Actuator Housing)
Orifice Size	0.51	Actuation Type	Air Pilot
Maximum Pilot Pressure	145 psi	Minimum Pilot Pressure	58.0 psi
Maximum Fluid Temperature	356 °F	Minimum Operating Pressure	0 psi
Signal Input	0/4 - 20 mA	Actuator Size	63 mm
Product Style	Proportional Control	Flow Coefficient	5.2 Cv
Input Supply Voltage	24 VDC
