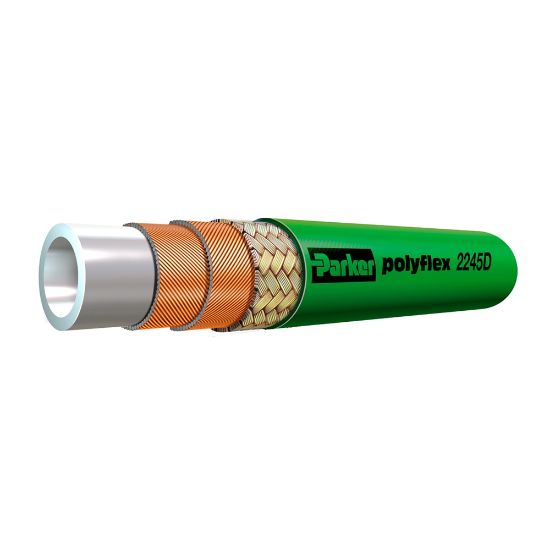

Picture of Parflex High Pressure Flex Lance Hose - 2245D - 2245D-03V33

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parflex High Pressure Flex Lance Hose - 2245D - 2245D-03V33

Parker 2245D flex lance hose is DIN EN1829-2 compliant and operates up to 15,000 psi.
Availability:
Backordered
SKU 2245D-03V33
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionParflex DivisionMinimum Operating Temperature14 °F
Maximum Operating Pressure15000 psiMediaWater
Cover ColorGreenCover MaterialPolyamide (PA)
Weight0.21 kg/mInside Diameter4.8 mm
ApplicationIndustrialMaximum Operating Temperature158 °F
Specifications MetDIN 1829-2Outside Diameter0.420 inch
Compatible FittingAX SeriesMinimum Bend Radius3.74 inch
Hose Inner Tube MaterialPolyoxymethylene (POM)Hose Reinforcement Material2 Spirals of High Tensile Steel Wire and 1 Braid of Steel Wire
Design Factor2.7Size-3
