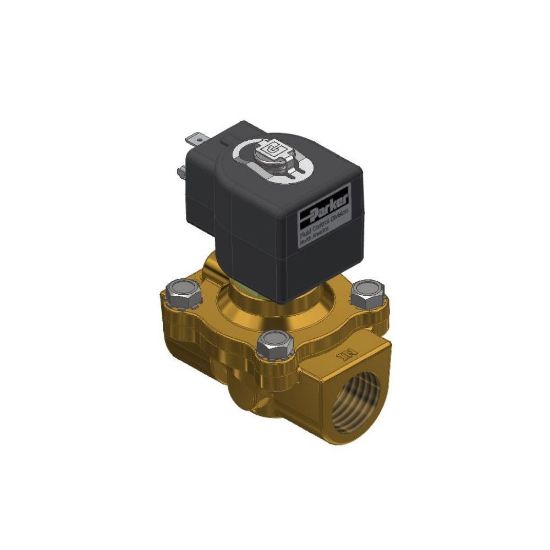

Picture of Parker 2-Way Normally Closed, 1" NPT General Purpose Solenoid Valves - 7221GBN64E00N0D100P3

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 2-Way Normally Closed, 1" NPT General Purpose Solenoid Valves - 7221GBN64E00N0D100P3

Parker 2-Way Normally Closed, 1" NPT Solenoid Valves provide operating pressures up to 300 PSI and flow factors up to 13.5 CV's. They offer brass bodies, multiple mounting positions and coil options for all general purpose flow control applications.
Availability:
Backordered
SKU 7221GBN64E00N0D100P3
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialEPDMVoltage (V)110/50-120/60
Power (Watts)10 Watt (AC)Coil TypeDIN Form A
Flow Factor 1 (Cv)11.7Port TypeNPT
Body MaterialBrassPort Size1 inch
DivisionFluid Control DivisionMediaLiquids and Gases
FunctionNormally Closed (NC)Valve Type2-Way
Input Voltage110/50-120/60Seal MaterialEPDM
Orifice 2 Sizen/aNumber of Ports2
Flow Coefficient 2n/aCoil Specifications MetNEMA 4X
Minimum Fluid Temperature0 °FMinimum Pressure Differential0 psi
Actuation TypeDirect LiftPower Consumption10 W (AC)
Coil TypeDIN Form AProduct Series7000 Series
Orifice 1 Size1 inchFlow Coefficient 111.7 Cv
Maximum Fluid Temperature210 °FMaximum Pressure Differential230 psi (AC)
